The perovskites investigated experimentally for use in superlattices include SrTiO₃, SrCeO₃, SrZrO₃, BaTiO₃, BaZrO₃, CaZrO₃, and LaAlO₃. Superlattices for the experiments were fabricated by pulsed laser deposition onto mostly LaAlO₃ substrates; a few specimens were prepared on SrTiO₃ substrates. Microwave filters containing superlattices were also fabricated. The superlattices were evaluated with respect to structure, composition, and dielectric properties.

Analysis of the observations made in the experiments led to the following conclusions:

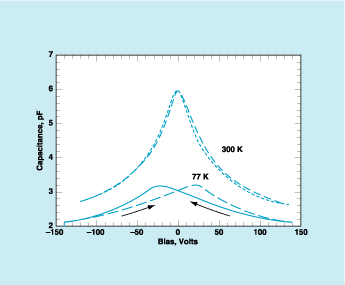

• Large tuning was observed in capacitors made from some superlattices (see figure). Ferroelectricity induced by lattice-mismatch strain in superlattices has been tentatively identified as the cause of tunability in the otherwise nontunable paraelectric perovskite constituents.
• Some of the superlattices exhibited positive dε/dΕ, where ε is permittivity and Ε is the magnitude of an applied electric field. This stands in contrast to the negative values of dε/dΕ typically observed in perovskites.
• Superlattices can be made to exhibit weak temperature dependences of tunability. For example, one SrTiO₃/BaZrO₃ superlattice was found to exhibit a tunability of 33 percent at both room temperature and at 77 K. In contrast, a typical ferroelectric material is tunable in only a narrow temperature range near a phase transition. Superlattices with weak temperature dependence of tunability could be attractive materials for situations in which precise control of temperature would be either impossible or too expensive.
• In tests on coplanar-waveguide microwave filters containing perovskite superlattices of a given total thickness, dielectric losses were found to be smaller than those in filters containing single SrTiO₃ films of the same total thickness.
