Curved actuators produce greater displacements than do flat actuators.

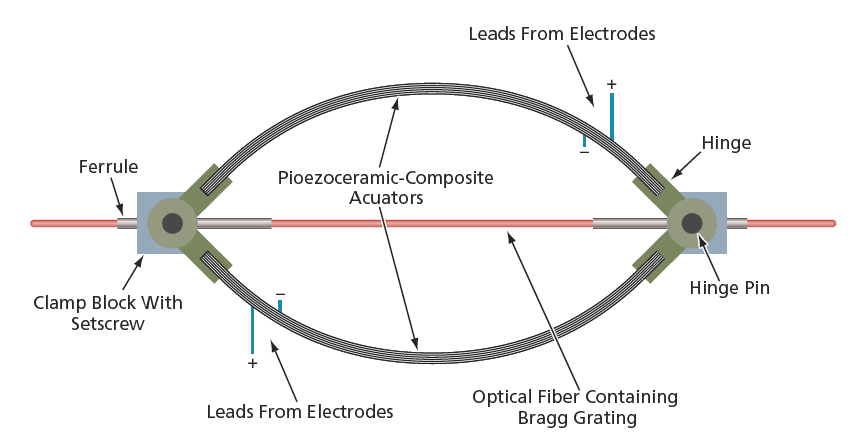

Assemblies containing curved piezoceramic fiber composite actuators have been invented as means of stretching optical fibers by amounts that depend on applied drive voltages. Piezoceramic fiber composite actuators are conventionally manufactured as sheets or ribbons that are flat and flexible, but can be made curved to obtain load-carrying ability and displacement greater than those obtainable from the flat versions. A curved actuator of this type can be fabricated by bonding a conventional flexible flat actuator to a thin metal backing sheet in a flat configuration at an elevated temperature so that upon cooling to room temperature, differential thermal contraction of the layers causes the laminate to become curved. Alternatively, such a curved actuator can be fabricated by bonding the layers together at room temperature using a curved mold.
