Nanophase nickel- zirconium alloys have been investigated for use as electrically conductive coatings and catalyst supports in fuel cells. Heretofore, noble metals have been used because they resist corrosion in the harsh, acidic fuel-cell interior environments. However, the high cost of noble metals has prompted a search for less-costly substitutes.

Nickel-zirconium alloys belong to a class of base metal alloys formed from transition elements of widely different d-electron configurations. These alloys generally exhibit unique physical, chemical, and metallurgical properties that can include corrosion resistance. Inasmuch as corrosion is accelerated by free-energy differences between bulk material and grain boundaries, it was conjectured that amorphous (glassy) and nanophase forms of these alloys could offer the desired corrosion resistance.

For experiments to test the conjecture, thin alloy films containing various proportions of nickel and zirconium were deposited by magnetron and radiofrequency co-sputtering of nickel and zirconium. The results of x-ray diffraction studies of the deposited films suggested that the films had a nanophase and nearly amorphous character.

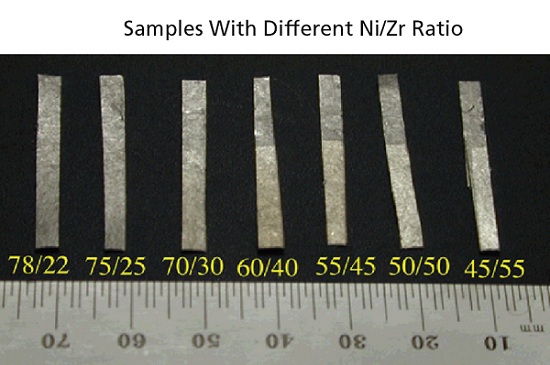

Samples of Thin Films of Ni/Zr Alloys were photographed after corrosion testing in sulfuric acid.The numbers next to the strips indicate the alloy compositions in atomic percent of Ni/atomic percentof Zr.

For tests of corrosion resistance, films of these alloys were deposited on graphite foils to form working electrodes. In each test, the working electrode was immersed in a 2 N sulfuric acid solution and polarized at a succession of potentials in range of 0.05 to 0.75 V versus a normal hydrogen electrode. The steady-state current sustained by the working electrode was monitored at each applied potential. For the alloys containing less than 70 atomic percent nickel, the steady-state current densities were less than 1 nA/cm2. Inasmuch as current densities less than 100 nA/cm2 are generally considered indicative of good corrosion resistance, these measurements can be interpreted as indicating excellent corrosion resistance. There was also visual evidence of excellent corrosion resistance (see figure).

One alloy, comprising 55 atomic percent nickel and 45 atomic percent zirconium, was selected for further tests. In one test, part of a nickel foil was coated with this alloy, then the foil was immersed in sulfuric acid for 48 hours. At the end of the test, the alloy coat remained shiny, while the uncoated part of the foil had become corroded. For another test, a thin film of the alloy was incorporated as a catalyst-support layer in an anode in a fuel cell. The fuel cell was then operated at a temperature of 90 °C for several tens of hours. The fuel cell exhibited stable current densities, indicating that the alloy is stable under fuel-cell operating conditions.

This work was done by Sekharipuram Narayanan, Jay Whitacre, and Thomas Valdez of for Caltech for NASA’s Jet Propulsion Laboratory.
