Data Acquisition System
The SLICE IP68 data acquisition system from DTS, Seal Beach, CA, measures physical signals in extreme test environments. It can embed in most test articles, and the rugged enclosure features sealed layers and IP68-rated connectors. The system features onboard signal conditioning and supports a variety of external sensors including bridge and IEPE transducers for gathering measurements like acceleration, displacement, strain, pressure, temperature, and voltage. Data writes directly to 16-GB internal flash memory.
For Free Info Visit here
Copper Parts
Tech-Etch, Plymouth, MA, provides etching, forming, heat-treating, and finishing of beryllium copper for battery contacts, grounding clips, connector contacts, ESD clips, and EMI/RFI shielding gaskets. Forming capabilities enable intricate sharp bends in tempers from annealed to full hard. Component parts are then inert-atmosphere heat-treated to enhance spring properties, permitting greater deflection without compression set. Available part finishes include tin, silver, zinc, electroless nickel, palladium nickel, and gold.
For Free Info Visit here

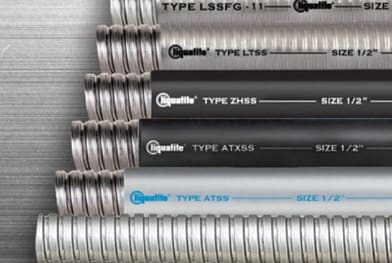

Electrical Conduits
Electri-Flex, Roselle, IL, introduced stainless steel jacketed flexible electrical conduits that are resistant to corrosive atmospheres and provide high mechanical strength. Type LSSFG is a food-grade conduit solution; Type LTSS is an industrial-grade solution, designed for installations requiring motion, vibration, and bending; Type ZHSS is made from a zero-halogen polyurethane jacketing with self-extinguishing characteristics; Type ATXSS is extreme high-/low-temperature conduit; and Type ATSS is an all-temperature conduit for corrosive applications.
For Free Info Visit here

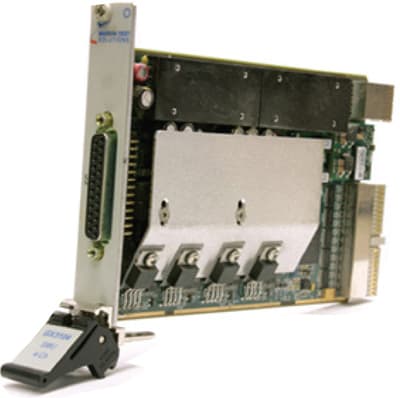

Source Measure Unit
Marvin Test Solutions, Irvine, CA, offers the GX3104 4-channel, 3U PXI source measure unit (SMU) that senses both voltage and current over a range of ±20 V and up to ±1 A. The module's flex-power architecture provides the option to configure the SMU as 4-channel, 250 mA/channel or as a single-channel, 1A SMU. The four channels are electrically isolated from the PXI power supply and share a common, isolated ground. All module power is provided by the PXI bus, eliminating the need for external DC power supplies.
For Free Info Visit here
Oscilloscopes
Pico Technology, Tyler, TX, introduced the PicoScope 5000D Series FlexRes oscilloscopes and mixed-signal oscilloscopes (MSOs) that feature up to 16 bits of vertical resolution with up to 200-MHz bandwidth and 1 GS/s sampling speed. They add 16 digital channels, providing the ability to time-correlate analog and digital channels. The oscilloscopes have waveform capture memory up to 512 megasamples. Deep memory enables the capture of long-duration waveforms at maximum sampling speed.
For Free Info Visit here

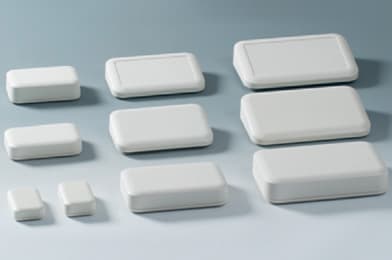

Electronics Enclosures
OKW Enclosures, Bridgeville, PA, offers EVOTEC 100-size tabletop electronic enclosures available in two versions: one with a large, flat top for switches, pushbuttons, and touch displays; the other with a 12° inclined top for desktop applications. The sloping-top version can be specified either with or without a recess for a membrane keypad or product label. The enclosures have screw pillars both in the top and base for installing PCBs. Self-adhesive rubber feet ensure stability on flat surfaces.
For Free Info Visit here
Flexible Electronics
Molex, Lisle, IL, announced flexible printed electronics including silver flexible circuits made by screening fine pitch silver traces on polyester, along with robust component attachment methods. Silver flex circuits on a polyester substrate enable integration of SMT components. Space-saving copper flexible circuits are suited for small, space-constrained applications as well as where bending or flexibility is required. Soligie printed sensors also are available that enable disposable electronics, wearable biosensors, and other monitoring systems.
For Free Info Click Here
Multi-Hole Probe
Aeroprobe Corp., Christiansburg, VA, introduced a miniature 7-hole probe with a tip diameter of 0.7 mm for industries where flow measurement is critical, including aerodynamics for automotive research and flight characterization for unmanned vehicles. The probe can be implemented in applications that require flow measurement near walls or in small spaces, such as in turbomachinery. The probe can make measurements over a wide range of flow angles.
For Free Info Click Here
Mini Circuit Breakers
Series 1100 miniature circuit breakers from c3controls, Beaver, PA, feature a 10-kA short-circuit current rating (SCCR), and include both UL 489 Branch Circuit Breakers and UL 1077 Supplementary Protectors. More than 500 configurations are available including one-pole, one plus neutral, two, three, and three plus neutral, with current ratings from 0.5A to 63A, all with thermal and magnetic trip elements for overload and short-circuit protection.
For Free Info Click Here

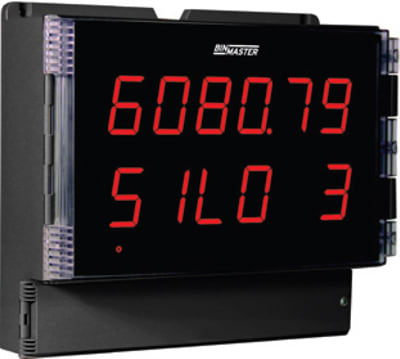

Modbus Scanner
The DPM-300 large-display Modbus scanner from BinMaster, Lincoln, NE, monitors and displays levels from a variety of sensors via a dual-line, six-character LED readout housed in a durable enclosure. It can communicate with any Modbus-enabled sensor, functioning as a Modbus RTU master, slave, or snooper. It includes two independently programmable analog process input channels for a total monitoring capability of up to 16 process variables. The scanner features a UV-resistant, sunlight-readable display with 1.8” characters.
For Free Info Click Here

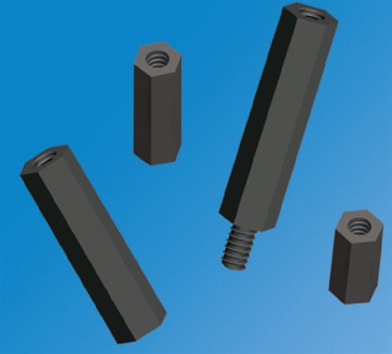

Threaded Standoffs
Keystone Electronics, New Hyde Park, NY, introduced threaded standoffs formulated using a high-performance Nylon blend for use in temperatures from -20 to +365 °F. The Nylon blend material allows the standoff to stay pliable and maintain tensile strength in both extreme cold and hot environments. The standoffs are available in 4-40, 6-32, and 8-32 threads in lengths from 1/4” to 1” in both male/female and female hex configurations.
For Free Info Click Here
Signal Acquisition
Measurement Computing Corp., Norton, MA, offers the DT9857E dynamic signal acquisition module for noise, vibration, and acoustic measurements. Eight or 16 24-bit IEPE (ICP®) sensor inputs are synchronized with a tachometer input, two measurement counters, and a general-purpose counter/timer to provide data streams that are matched in time, for field or laboratory use. Two stimulus D/A outputs, each of 32-bit resolution, and an 8-bit digital output port are available for dynamic waveform generation and control.
For Free Info Click Here
Industrial PC
Beckhoff, Savage, MN, introduced the C6015 industrial PC (IPC) space-saving IoT edge device that integrates IoT and analytics functionality. The IPC with multi-core technology can be installed in highly confined spaces. Equipped with an Intel® Atom™ processor that offers up to four CPU cores, it provides sufficient processing power for collection, processing, and provision of process data. Existing process technology systems can be equipped with additional IoT capabilities using this device, or they can be readied to meet future communication requirements.
For Free Info Click Here
Ethernet Cables
Ultra-flexible, braided shield Ethernet cables were introduced by L-com Global Connectivity, North Andover, MA. The cable assemblies are rated to 10 million flex-cycles at 1.82”. The series includes the TRD855HFB family that features shielded RJ45 connectors on each end of the assembly and Category 5e rated cable. The TRG515-P6D features shielded RJ45 connectors on one end of the assembly and RJ45 GigE connectors on the other end, and the TRG516-P6D features RJ45 GigE connectors on both ends of the assembly.
For Free Info Click Here
FPGA Board
Abaco Systems, Huntsville, AL, announced the VP869 6U OpenVPX FPGA processing board with two Xilinx®UltraScale+™ FPGAs and a Zynq® 7000 Series multiprocessor system-on-chip. Two VITA 57 FMC+ sites are provided for high-performance analog I/O, digital communications, or video input. The board offers extreme backplane bandwidth, with more than 72 high-speed serial lanes routed to the backplane, delivering 594 Gbps of data throughput for processing and offload applications.
For Free Info Click Here
Rechargeable Battery
Panasonic Corp., Rolling Meadows, IL, offers the BK1100-FHU high-temperature nickel metal hydride rechargeable battery with ambient discharge range of -30 to 85 °C. It also has a minimum rated capacity of 11,000 mAh. The battery is suitable for applications requiring high capacity and a wide operating temperature range such as renewable energy applications and power sources.
