Engineers Enable a Drone To Determine Its Position in the Dark and Indoors

Motion Design INSIDER

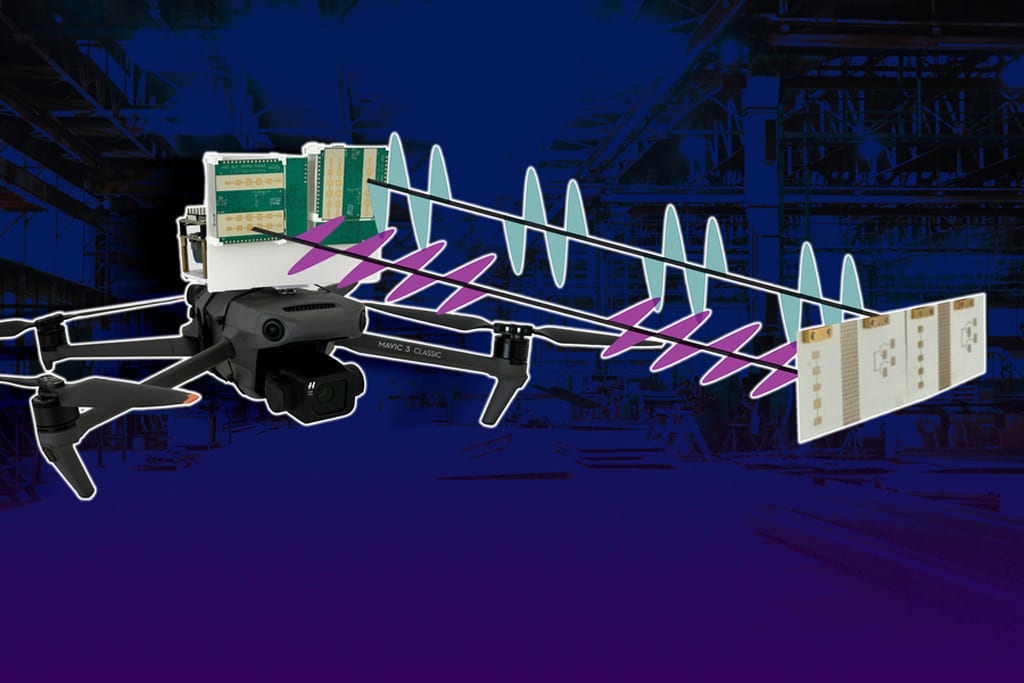

MIT researchers developed a system that enables a drone to determine its position in 6D space in indoor, dark, or low-visibility environments using radio frequency waves. The drone has 2 radars; the horizontal radar has a horizontal polarization, which means it sends signals horizontally, while the vertical radar would have a vertical polarization. (Image: Figures courtesy the researchers; edited by MIT News)

In the future, autonomous drones could be used to shuttle inventory between large warehouses. A drone might fly into a semi-dark structure the size of several football fields, zipping along hundreds of identical aisles before docking at the precise spot where its shipment is needed.

Most of today’s drones would likely struggle to complete this task, since drones typically navigate outdoors using GPS, which doesn’t work in indoor environments. For indoor navigation, some drones employ computer vision or lidar, but both techniques are unreliable in dark environments or rooms with plain walls or repetitive features.

MIT researchers have introduced a new approach that enables a drone to self-localize, or determine its position, in indoor, dark, and low-visibility environments. Self-localization is a key step in autonomous navigation. The researchers developed a system called MiFly, in which a drone uses radio frequency (RF) waves, reflected by a single tag placed in its environment, to autonomously self-localize.

Because MiFly enables self-localization with only one small tag that could be affixed to a wall like a sticker, it would be cheaper and easier to implement than systems that require multiple tags. In addition, since the MiFly tag reflects signals sent by the drone, rather than generating its own signal, it can be operated with very low power. Two off-the-shelf radars, using millimeter-wave signals, are mounted on the drone to enable it to localize in relation to the tag. Those measurements are fused with data from the drone’s onboard computer, enabling it to estimate its trajectory.

To ensure the device uses low power, they designed a backscatter tag that reflects the millimeter wave signals sent by the drone’s onboard radar. The drone uses those reflections to self-localize.

But the drone’s radar would receive signals reflected from all over the environment, not just the tag. The researchers surmounted this challenge by employing modulation. “Now, the reflections from the surrounding environment come back at one frequency, but the reflections from the tag come back at a different frequency. This allows us to separate the responses and just look at the response from the tag,” said Laura Dodds, one of the researchers.

However, with just one tag and one radar, the researchers could only calculate distance measurements. They needed multiple signals to compute the drone’s location.

Rather than using more tags, they added a second radar to the drone, mounting one horizontally and one vertically. The horizontal radar has a horizontal polarization, while the vertical radar has a vertical polarization.

The polarization into the tag’s antennas enables it to isolate the separate signals sent by each radar. In addition, they applied different modulation frequencies to the vertical and horizontal signals, further reducing interference.

This dual-polarization and dual-modulation architecture gives the drone’s spatial location. But drones also move at an angle and rotate, so to enable a drone to navigate, it must estimate its position in space with respect to six degrees of freedom — with trajectory data including pitch, yaw, and roll in addition to the usual forward/backward, left/right, and up/down.

“The drone rotation adds a lot of ambiguity to the millimeter wave estimates. This is a big problem because drones rotate quite a bit as they are flying,” Dodds said.

They overcame these challenges by utilizing the drone’s onboard inertial measurement unit, a sensor that measures acceleration as well as changes in altitude and attitude. By fusing this information with the millimeter wave measurements reflected by the tag, they enable MiFly to estimate the full six-degree-of-freedom position of the drone in only a few milliseconds.

They tested a MiFly-equipped drone in several indoor environments, including their lab, the flight space at MIT, and the dim tunnels beneath the campus buildings. The system achieved high accuracy consistently across all environments, localizing the drone to within 7 centimeters in many experiments. In addition, the system was nearly as accurate in situations where the tag was blocked from the drone’s view. They achieved reliable localization estimates up to 6 meters from the tag.

That distance could be extended in the future with the use of additional hardware, such as high-power amplifiers, or by improving the radar and antenna design. The researchers also plan to conduct further research by incorporating MiFly into an autonomous navigation system. This could enable a drone to decide where to fly and execute a flight path using millimeter wave technology.
