It is well known from astronomical imaging that various atmospheric conditions and weather effects have an impact on image quality. This is due to local changes of the refractive index of the air in the optical path. These changes are wavelength-dependent and vary with changes in the atmospheric pressure and its humidity.

In the field of machine vision, both pressure and humidity can usually be assumed to be constant over the entire optical path. There is an exception to this rule if there are turbulent air currents in the optical path that will cause local pressure changes. A typical cause for turbulence is heat convection between parts at different temperatures. Common heat sources in machine vision are illumination, high-load electronics, or high-temperature samples (e.g. poured metal).

Influence on Imaging with Line Scan Cameras

The different refractive indices in the turbulent air act as a gradient lens that warps the image content in the affected areas. The magnitude and extension of the warping is too complex and too dependent on the setup to model mathematically. Instead, an example measurement of this effect is shown to represent the typical magnitude of the effect and to guide you in measuring it in your own setup.

In a line scan camera, the optical distortion is constant for each line along the scanning direction and is therefore not visible in the image. This fact reduces the problem to one spatial dimension (perpendicular to the scan direction) and the time dimension. Both dimensions can be observed at once by acquiring an image of a static target with the line scan camera. The optical distortion will shift the position of the image content in the x-direction while the extension of the warping in the y-direction represents the time information.

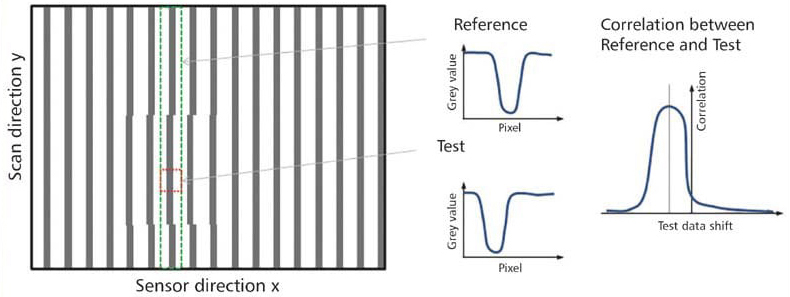

Figure 1. Sketch of the measuring scheme for the image shift.

This shift can be measured easily by imaging a static line pattern. The basic principle of this measurement is depicted in Figure 1. A reference image intensity profile is taken by averaging a region of interest containing an area of a few columns around each x position (depicted in green). A square test block (depicted in red) is passed along the whole column and for each position, the test data is shifted in subpixel steps via interpolation. The shift with the highest correlation between test and reference is recorded for each pixel and can be plotted in a color scale image to visualize the data.

Figure 2 shows this visualization from a static line pattern image captured with a Chromasens allPIXA camera with 5-μm optical resolution. The heat source in this case is the Chromasens Corona II tubelight illumination that was operated at maximum LED current. In this setup, the magnitude of the optical distortion is in the range of <0.15 pixel. The turbulences are visible in the shift image as areas of similar distortion. They extend over a size of 10 mm to 30 mm and persist for 200 ms to 800 ms.

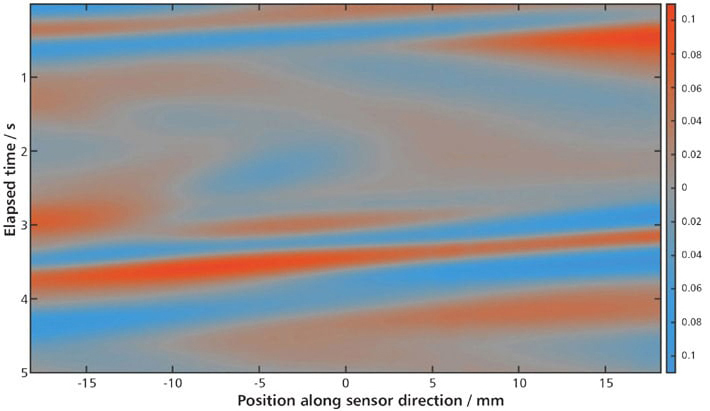

Figure 2. Color image representation of the measured image shift. The color scale indicates the shift in sub-pixel units.

This measurement shows that the magnitude of the image disturbance due to heat convection from a standard illumination will not have a noticeable impact for standard inspection tasks; however, specialized image processing tasks that depend on subpixel accuracy (e.g. sub-pixel accurate feature extraction or sub-pixel-based image correlation) will likely show decreased measurement accuracy due to these distortions.

Suppression of Image Warping

The image warping effect can be suppressed by preventing the turbulences. For this purpose, a fan can be utilized to create a laminar airflow. As the pressure in a laminar flow is constant, no gradient lens effects will occur. The airflow either needs to cover the whole surface of the heat source or the whole volume of the optical path where turbulences are likely to appear.

The second option is typically easier to realize for line scan cameras, as the optical path is constrained to a plane. The fan can therefore be installed to the side of the camera with the flow direction along the sensor line. In the example above, the air in the volume directly below the viewing slit of the tubelight needs to be perfused by a laminar flow. Since the side-walls of the illumination block a direct side access for the air stream, the fan was installed on top of the tubelight and blowing into the viewing slit at a tilted angle, as shown in Figure 3. This method reduced the magnitude of the distortion to an indiscernible small size.

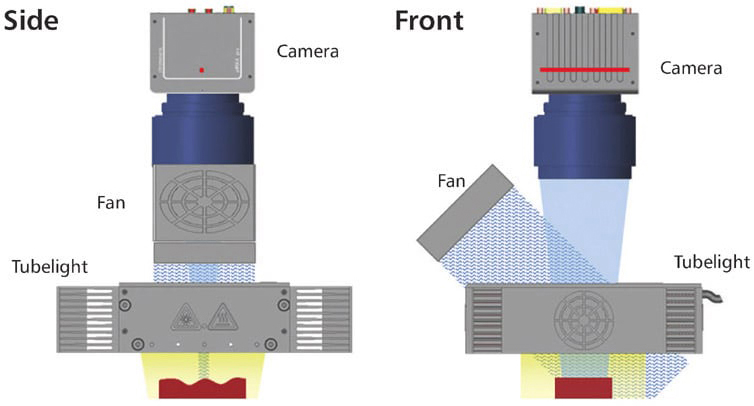

Figure 3. Recommended suppression setup for a Chromasens tubelight setup. For illustration, the sensor is depicted as a red point in the left image and as a red line in the right image.

Summary

It is described how a heat source near the optical path can introduce image warping that locally shifts the position of the image content. For line scan cameras, there exist image regions of similar shift that cover several mm of the field of view that emerge and vanish in the time frame of about one second. Sub-pixel analysis of image content will be influenced negatively by this shift. To suppress this effect, it is recommended to cover the whole volume along the optical path that is affected by turbulences with a laminar air current from a fan.
