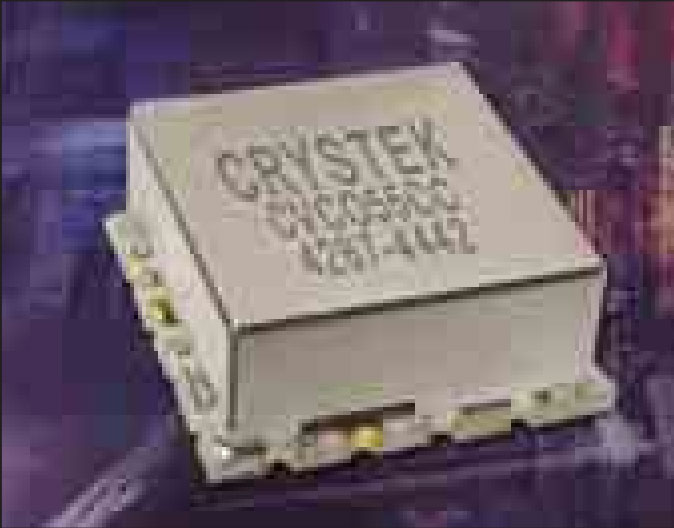

Crystek CVCO55CC-4267-4442 VCO (Voltage Controlled Oscillator)

The CVCO55CC-4267-4442 VCO (Voltage Controlled Oscillator) from Crystek (Fort Myers, FL) operates from 4267 MHz to 4442 MHz with a control voltage range of 0.1V-16V. The VCO features a typical phase noise of -104 dBc/Hz @ 10KHz offset and has excellent linearity. Output power is typically +5.0 dBm.

The model CVCO55CC-4267-4442 is packaged in the industry-standard 0.5-in. × 0.5-in. SMD package. Input voltage is 8V, with a max current consumption of 40 mA. Pull ing and Push ing are minimized to 3.00 MHz and 0.50 MHz/V, respectively. Second har monic suppression is -20 dBc typical. The CVCO55CC-4267- 4442 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
