A new valve concept consists of a solid piston floating in a medium to control a flowstream. Although the conical shape of the seat is a prominent feature of the valve, especially when the concept was first developed, the key feature of the valve is the balanced floating piston that acts as both the valve plug and the actuator. The origin of this design was based upon the need for large, extremely high-pressure valves to replace the ball valves currently used as supply valve tank pressurants in rocket testing.
The ball valves currently in use are 12,000-psi, 8” ball valves that flow 890 lbm/sec of gas through them during testing. They have been problematic during operation, with very short lives, and expensive rebuilds and redesigns that are often required. As supplied, the valves only operate two or three cycles before failure and cannot be opened with a pressure drop across them. A recent redesign has extended their life span to more than 20 cycles, but they still cannot be opened with a pressure drop across them; equalization is required before opening.
Instead of improving the current valve, it was decided to determine what was causing the failure and design that out of the valve. It was determined that the forces acting on the ball by the seat retainers were extremely high, and the internal pressure acting on the valve stem to eject it was also extremely high. Failures were occurring in the trunnion and in the seat itself due to the excessive force being applied by the seat retainer, which used both springs and the internal pressure of the valve to generate a very high load on the seat retainer to hold it onto the ball. Because of this force, a large-diameter stem is required to transmit the force of a very large actuator to the ball to get it to turn. As a result, the large-diameter stem is also trying to be ejected by the internal pressure of the valve, which requires a thrust takeout feature that allows turning.
Rolling bearings were not desired due to damaging effects upon failure they would have on expensive equipment, and lubrication use was limited because the work is being conducted in a very high-pressure oxygen environment. These issues lead to a design that initially featured bronze sliding thrust bearings, which led to subsequent revisions that ended up with Torlon thrust bearings. This process can be equated to trying to turn the wheels of a car while the disc brake is applied. The Torlon disc actually wears much like the pads on disc brakes, but with a much shorter life.
The Concept Design

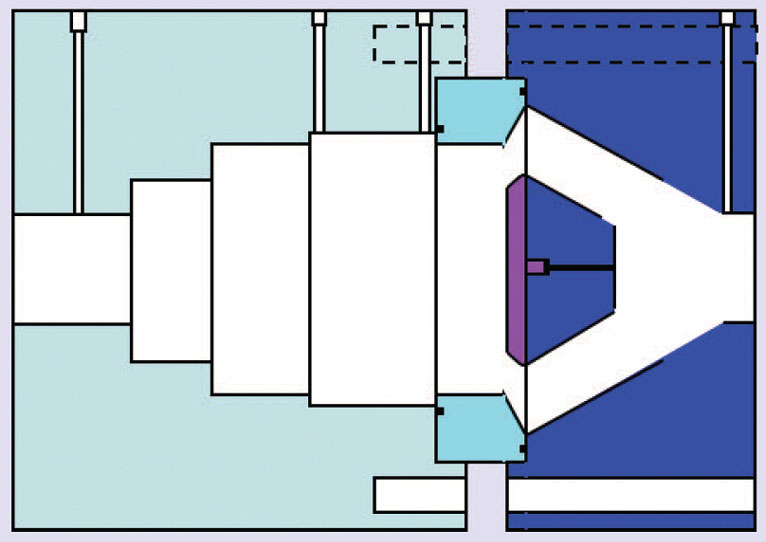

In trying to eliminate or control the forces acting on the ball and stem, the seat retainer that pressed the seat to the ball using springs, plus the additional force of the pressure drop across the valve, was first approached. This design — a version found in most ball valves — causes the seating force to vary greatly, depending on the pressure across the valve. This is also common in other valve designs such as globe valves. It was determined that the force generated by the valve's internal pressure could be removed by adding an additional set of seals, and the pressure could be used to actually work against the springs, if desired, to lift the seat completely off the ball, allowing for free rotation. Upon noticing that when both seats were lifted, flow would move around the ball before the ball was moved, it seemed that by increasing the retraction of the seat, or now the valve stroke, the ball could be eliminated. The ball was replaced with a fixed seat, moving the wear item over to the non-moving part, and designing channels to route the flow around the seat and out the other side of the valve.
An additional chamber was added to eliminate the spring and power the valve in both the open and closed directions. The motive force for the piston could be either an external source or the working fluid inside the valve itself. Finally, a final chamber was added to balance the force of the downstream pressure. This last innovation allowed all forces to be balanced on the floating piston no matter what position the valve was in or what the pressure drop was across the valve. This means the valve always opens or closes with the same force as per the design.
The design is essentially a globe valve in which all of the flow passes through the center of the plug instead of just being diverted off to the side of the plug. In this case, the plug and the seat are reversed; the seat is a solid disc, whereas on typical globe valves, the seat is a ring and all of the flow passes through the seat. The piston is designed so that it is not influenced by the pressure drop or flow inside the valve.
Advantages and Features
This concept has many unique features and design advantages over conventional valve concepts. First, the flow path is always axially and radially symmetric, eliminating almost all of the flow-induced thrust loads, even during transition from closed to open. This minimizes the need for mounting restraints and a thrust take-out structure.
Next, the flow areas where the flow is required to change direction over the seat and through the connecting passages are designed to at least 150% of the cross-sectional flow area of the inlet and outlet pipes. The inlet, outlet, and piston passages should match the pipe, exactly as with ball valves. The 150% area is estimated to reduce the velocity in the turbulent regions and minimize flow losses. Modeling indicates that this design will have an approximate 15% improvement in flow over a similarly sized standard globe valve.
The greatest advantage is the elimination of the valve stem and any conventional actuator. No matter how large or how high the pressure, the valve is designed for one or two small solenoid valves that will operate the valve completely. For very high-pressure valves, stem seals and bending of the valve stem are two major issues that cause valve failure. Because of the design concept of this valve, there are essentially no bending forces that have to be addressed. Since there is no valve stem, there are no stem seals to leak, or to protect from dirt and scarring or binding the stem.
With the elimination of the valve stem, the need for a conventional valve bonnet is eliminated as well. Instead, the body of this valve is formed by two cylindrical parts that are squeezed together with a bushing between them. The elimination of the bonnet reduces the envelop and mass of the valve by an estimated 30%.
Additionally, the features of the parts are all simple circular features, so everything can be either turned on a lathe or drilled on a simple mill. This reduces fabrication time and cost.
Because of the large-diameter seat, the amount of piston movement needed to achieve full flow is greatly reduced. Typical globe valves may have a plug assembly that has to travel over 3” in order to get sufficient flow area. With this concept, travel of only about 3/4” will meet the design requirement of 150% cross-sectional flow area through the seat opening. This short stroke allows for reduced valve actuation times while keeping the piston velocity much lower. An issue seen with large, rapid-actuation valves is that the valve stem actually stretches when the actuator tries to slow the valve, right before it slams into the seat. With the reduced velocity and increased seat contact area, slowing may not be required. If slowing is required, it will be achieved through baffling the venting process of the opening chamber and therefore, no hard pulling or stretching is required. Additionally, contact will always be with the same amount of force no matter what the pressure drop is across the valve.
Another benefit to eliminating the connection to a valve stem is the elimination of the need for valve adjustments. Conventional valves require the stroke to be adjusted as the seat wears or is coined in. Because the piston floats in this valve, it will move forward until it is stopped on the seat. Seat wear or temperature changes will not affect either the force of the closure or the contact area with the seat.
Because the piston is balanced within the flow stream and the force required to close the valve is always the same, the amount of gas required to operate the valve is reduced by more than 90% of that required for a conventional, pneumatically actuated valve. Large pneumatic actuators can cost more than $50,000 and be several feet in diameter and length, adding to the envelope of the valve. Although the large reduction of gas required to operate the valve may be a small portion of the total cost, it may allow the valves to be operated with a gas source such as a K-Bottle or a compressor, and thus eliminate the need to run high-pressure gas tubing to every valve in a system.
Overall, with fewer parts, smaller size, robust component shapes and designs, shorter stroke, and consistent seating force, the valve is expected to demonstrate increased reliability and life over comparable conventional valve designs. The cost of fabrication should also be significantly less and should require less raw material. Because of the balanced design, the valve is also inherently bidirectional. The closing force is exactly the same, even if the higher-pressure fluid is on the “downstream” side of the valve.
