The demand for innovative solutions to enhance the safety of military personnel is continually on the rise. This includes the need to improve the performance of military vehicles and aircraft, in terms of both safety against laser attack and maximizing the information that can be presented to pilots without obstructing their view.

As well as safety, greater data is needed by pilots and soldiers, yet the systems gathering the data need to be compact, lightweight, and effective – and these requirements are driving the use of optical technologies in military and aerospace applications, including head-up displays and laser protection filters.

Coating Design and Precision Deposition Technology

All high-performance optical systems use coated components, which are improved by developments in optics and photonics, and deposition technology. Without the use of coatings, everyday objects such as cameras in mobile phones would not work as effectively as there would be too much reflection. This is eliminated with an efficient coating process. This is even more important in aerospace and defense applications.

Figure 1. High-performance Notch Coating

Optical interference coatings are typically multilayer, nano-thickness structures applied to the surfaces of optical components to modify their optical performance. Using the principle of constructive and destructive interference, transmittance and reflection can be controlled within specific parameters. Absorption and non-optical properties such as electrical conductivity and surface hardness can also be influenced by the properties of the coating material.

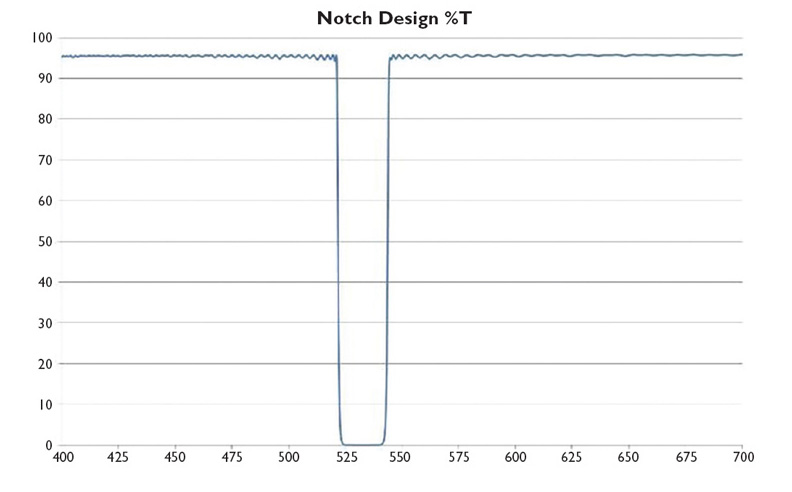

Figure 1 shows the response of a high-performance filter designed to block a 532 nm (green) laser while transmitting other visible light.

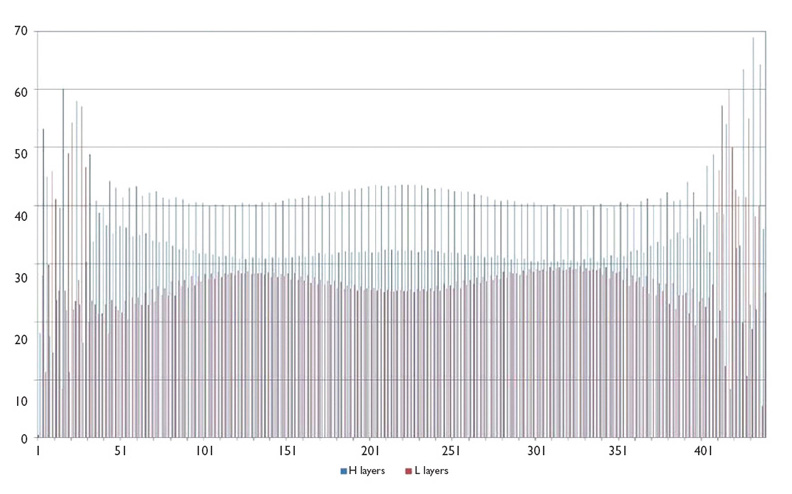

Figure 2 shows the layer structure of this multilayer alternating refractive index design of around 500 layers with thicknesses varying from 5-70 nm.

To keep pace with progress in innovation, coating engineers use specialized design software in combination with advanced modelling tools to produce complex multi-element designs, which achieve the highest performance requirements for today’s systems.

Figure 2. ~ 500 Layer Design (5-70nm layer thickness)

Considerations When Designing Coatings

When designing a coating, it is essential that low stress is exerted on the substrate material. This allows for good coating adhesion and enables high optical flatness specifications required in modern applications.

Coatings that will be used in defense applications will be regularly exposed to large variations in weather conditions, which means that the coatings must be environmentally durable. And coatings need to be robust against high energy laser attacks.

Sensitive substrates, such as plastics, polymers, electronic sensors and structured devices should be carefully considered before coating, as coating an already sensitive material may decrease the product’s lifecycle by causing stress and making it susceptible to damage.

Performance versus cost is always a consideration. Will the price of coating a material reflect in its enhanced performance and durability? Do you really need to invest in an 800-layer coating when 400 layers would suffice?

And finally, the choice of coating materials needs to be carefully selected to operate at different wavelengths. This means that if an application needs to be suitable for night operation, the coating may need to be transparent in infrared.

Precision Material Deposition and Technology

Figure 3. Predictable Coating Material Properties

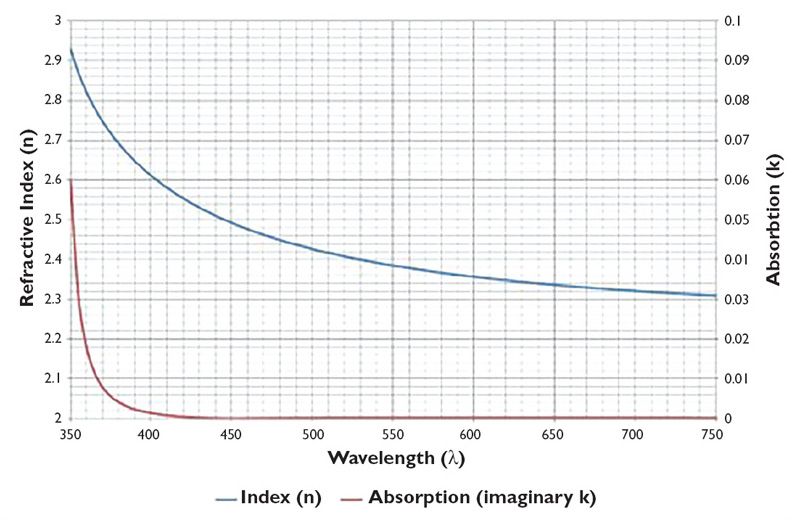

The key coating material properties are: refractive index, absorption coefficient, stress coefficient, and durability. Design software is used to control the performance of the coating, allowing the material to be efficiently used. Figure 3 shows how the refractive index and absorption typically change by wavelength; this also depends on the nature of the deposition process.

There is a large range of coating materials available depending on the specific application. Materials used for visible wavelengths include silicon dioxide (SiO2), titanium dioxide (TiO2), aluminum oxide (Al2O3), tantalum oxide (Ta2O5), hafnium oxide (HfO2), and magnesium fluoride (MgF2). Materials used for infrared applications include zinc sulfide (ZnS), germanium (Ge), silicon (Si), silicon oxide (SiO), ytterbium fluoride (YbF3), and yttrium fluoride (YF3).

There are many processes used for the manufacture of optical thin films that are Physical Vapor Deposition (PVD) methods; this is the principle technique used to coat a surface. Under PVD, the coating is evaporated onto the surface using a powerful electron beam gun (EBG) under high vacuum, which reduces the risk of contaminating the growing film.

HUD Combiner

PVD includes several specific coating techniques, including Ion Assisted Deposition (IAD), Ion Beam Sputtering (IBS) and Plasma Enhanced Chemical Vapor Deposition (PECVD):

  • IAD adds a high-energy ion beam directed at the part being coated, which results in a higher density coating;

  • IBS directs a wide high-energy beam at the target (the coating material), which causes atoms to be sputtered off the surface. The atoms then deposit on to the parts to be coated resulting in a high-density super-smooth coating;

  • PECVD is a chemical vapor process, which deposits the film directly from the gas state on to the parts, while being influenced by a high energy plasma.

Dual-Plated HUD in an Aircraft

Plasma Ion Assist Deposition (PIAD) is another commonly used high volume production technique. Dense films are achieved by directing energetic ions from an intensive positively biased plasma at the growing films. This enables close control of the refractive index and absorption coefficient.

HUD Application

A head-up display (HUD) is a transparent instrument that presents data in the users’ line of vision, while enabling continual monitoring of the external environment. The user can be a pilot or an occupant of a vehicle. The user does not have to shift their eyes away from their usual viewpoint, while being provided with detailed, additional information.

HUDs were initially developed for military aviation during World War II to support pilots in viewing navigational and targeting information, while still being able to focus ahead. However, they are now used in a variety of other industries, including commercial aircraft and automobiles.

Since then, the photonic technology used within HUDs has allowed for sophisticated waveguide optics permitting light to be guided by a more compact system, which can also be designed for applications such as night vision systems.

Innovative and game-changing HUD solutions come with single or multiple color-selective notches, selected for specific wavelengths to be reflected. In turn the process can also enhance contrast and improve transmission. Angle-of-incidence compensated coatings offer consistent brilliance across the entire display, while amplitude graded combiners that give seamless display balance are also available (Figure 4).

Figure 4. Combiner Coating Performance

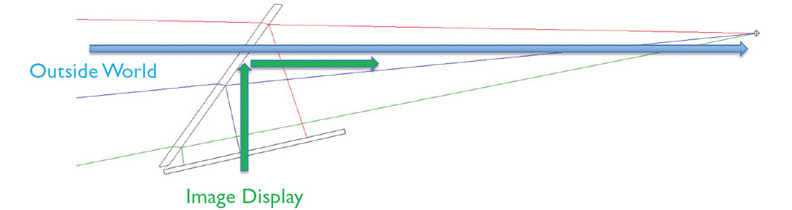

HUD combiners can either be single or dual plated, which depends on the technology needed to best fit the application. A dual combiner HUD – with display port and amplitude grade – folds the light, allowing more information in the same space.

Single Combiner HUD – With Waveguide Shown

The HUD system gives pilots a greater field of augmented vision throughout all phases of flight, especially take-off and landing, and provides pilots with essential, intuitive and immediate trajectory information through symbols overlaid on top of the pilot’s actual external view.

The future is looking bright for HUDs. In the UK, Artemis worked on the SmartHUD project, part funded by the National Aerospace Technology Exploitation Program (NATEP), to deliver solutions for the next generation of HUDs to BAE Systems, in partnership with Plessey Semiconductors. The aim of the program was to support the development of a dual plate head-up display assembly based on LED technologies and using unique, newly designed thin film coatings. This offered advantages such as reduced weight, longer useful life of the light source and enhanced optical performance of the overall module.

Dual Combiner HUD - With Display Port and Amplitude Grade Highlighted

Civil HUDs are becoming mandatory for safety reasons, which will see a vast increase in the number of HUDs being manufactured along with a larger need for optical coatings for HUD applications. In 2012, the Civil Aviation Administration of China (CAAC) announced that all Chinese airlines and commercial aircraft flying into Chinese airspace would be required to use HUDs within their aircraft by 2025.

HUDs are a form of augmented reality (AR), as data is being overlaid onto a real-world view. With Industry 4.0 hitting a peak in 2017, the HUD and optical technology market can only benefit from the heightened awareness around technologies that can change everyday life, including AR headsets.

HUD Component

Harnessing the use of HUD technology, Artemis and Plessey will be partnering once again to improve AR headsets. The project will utilize Plessey’s groundbreaking IP protected monolithic microLED GaN-on-Silicon technology to address the limitations currently faced in the field of photonics and headsets when using competing technologies, such as sapphire and OLEDs.

Figure 5. Global HUD Market Revenue

By applying Plessey’s monolithic microLED technology, manufacturers can overcome challenges such as productivity, uniformity, thermal performance and brightness. This will then allow for smaller, high-resolution and luminance displays for a range of AR applications.

The fully monolithic approach also supports the integration of standard CMOS circuitry necessary for driving microLED displays, as well as the close integration of high performance graphic processing units (GPU’s), all of which can be carried out using standard CMOS manufacturing methods.

With the global head-up display market set for growth, and the overall photonics market estimated to grow around 6% each year (Figure 5), the opportunities for military and aerospace optics technology is huge.
