Scanning tunneling optical resonance microscopy (STORM) is a method, now undergoing development, for measuring optoelectronic properties of materials and devices on the nanoscale by means of a combination of (1) traditional scanning tunneling microscopy (STM) with (2) tunable laser spectroscopy. In STORM, an STM tip probing a semiconductor is illuminated with modulated light at a wavelength in the visible-to-near-infrared range and the resulting photoenhancement of the tunneling current is measured as a function of the illuminating wavelength. The photoenhancement of tunneling current occurs when the laser photon energy is sufficient to excite charge carriers into the conduction band of the semiconductor.

Figure 1 schematically depicts a proposed STORM apparatus. The light for illuminating the semiconductor specimen at the STM would be generated by a ring laser that would be tunable across the wavelength range of interest. The laser beam would be chopped by an achromatic liquid-crystal modulator. A polarization-maintaining optical fiber would couple the light to the tip/sample junction of a commercial STM.

An STM can be operated in one of two modes: constant height or constant current. A STORM apparatus would be operated in the constant-current mode, in which the height of the tip relative to the specimen would be varied in order to keep the tunneling current constant. In this mode, a feedback control circuit adjusts the voltage applied to a piezoelectric actuator in the STM that adjusts the height of the STM tip to keep the tunneling current constant. The exponential relationship between the tunneling current and tip-to-sample distance makes it relatively easy to implement this mode of operation.

Figure 1. A STORM Apparatus would implement a combination of traditional scanning tunneling microscopy (STM) with tunable laser spectroscopy.

The choice of method by which the photoenhanced portion of the tunneling current would be measured depends on choice of the frequency at which the input illumination would be modulated (chopped). If the frequency of modulation were low enough (typically< 10 Hz) that the feedback circuit could respond, then the voltage applied to the piezoelectric tip-height actuator could be measured by use of a lock-in amplifier locked to the modulation (chopping) signal. However, at a high modulation frequency (typically in the kilohertz range or higher), the feedback circuit would be unable to respond. In this case, the photoenhanced portion of the tunneling current could be measured directly. For this purpose, the tunneling current would be passed through a precise resistor and the voltage drop would be measured by use of the lock-in amplifier.

The optimum modulation frequency can vary from specimen to specimen and with changes in the local environment. However, in general, the high-frequency approach is preferable because it affords the ability to filter out unwanted contributions to the tunneling current due to thermal effects. These effects include thermovoltage due to differential heating of the tip and specimen, thermal expansion of the tip, and thermionic emission.

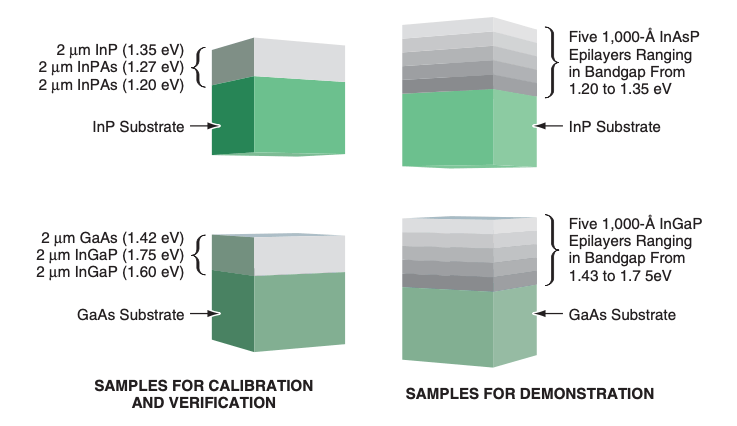

Figure 2. Heterostructures containing single and multiple III-V epilayers are to be evaluated by use of STORM.

To achieve the highest resolution, the STORM apparatus must be vibrationally isolated from its surroundings. The STM portion of the apparatus would be completely enclosed in a vibration-isolation chamber specifically designed to filter out low-frequency vibrations (which are particularly problematic in scanning probe microscopy), audio frequencies, and stray light. A standard Pt/Ir STM probe tip would be used to minimize effects of deterioration of the tip and interactions with the illumination.

Initially, in a proposed demonstration, a prototype STORM apparatus would be used to measure the local bandgaps on well-characterized metal/organic chemical-vapor-deposited epilayers composed of elements from periods III and V of the periodic table ("III-V epilayers"). InAs1-xPx and In1-xGaxP can be grown with extremely precise stoichiometry so as to provide a range of bandgaps that are accessible to the wavelength range of a tunable solid-state laser included in the proposal.

In principle, the optical bandgap of InAs1-xPx should vary from 0.36 to 1.35 eV and the optical bandgap of In1-xGaxP should vary from 1.35 eV to 2.27 eV as x is raised from 0 to 1. In practice, lattice mismatches make it impossible to achieve these ranges. However, it is possible to provide a set of samples having bandgaps ranging from 1.2 to 1.75 eV. It is planned to grow initial single control epilayers of these materials (see left side of Figure 2) and characterize them by use of standard techniques. Single-crystal x-ray diffraction (and scanning electron microscopy with energy-dispersive spectroscopy) will be used to determine the stoichiometric coefficients of these samples. The relationship between the stoichiometry, lattice parameters, and optical bandgaps in these materials has already been established to a high degree of certainty. In addition, Hall-effect and four-point probe measurements will be performed to determine the electrical properties of the materials. These materials will constitute, in effect, a calibration set for initial qualification of the proposed STORM apparatus. The optical bandgaps measured by use of STORM on cleaved cross sections of the individual epilayers will be compared to their known values.

Subsequently, the individual epilayers of the calibration set would be incorporated into multilayer heterostructures (see right side of Figure 2). The entire cross-sectional surfaces of these multilayer stacks would be scanned by STORM and the "turn-on" wavelength of each layer would be determined by the spectroscopic illumination technique of STORM. It is planned to grow several analogous structures with decreasing layer thicknesses for use in studying how the turn-on characteristics and optical bandgaps of the individual layers vary with decreasing thickness and comparing them with quantum-mechanical theoretical estimates based on the bulk properties of the materials.

It is also planned to use STORM to measure the size dependencies of the optical bandgaps of isolated nanocrystals. Two specific types of systems that will be studied are semiconducting quantum dots and high-purity single-wall carbon nanotubes. These systems are the foci of several current projects at Glenn Research Center.

This work was done by Sheila Bailey and Dave Wilt of Glenn Research Center, Ryne Raffaelle and Tom Gennett of Rochester Institute of Technology, Padetha Tin of the National Center for Microgravity Research NASA GRC, and Janice Lau, Stephanie Castro, Philip Jenkins, and Dave Scheiman of Ohio Aerospace Institute.

Inquiries concerning rights for the commercial use of this invention should be addressed to

NASA Glenn Research Center
Commercial Technology Office
Attn: Steve Fedor
Mail Stop 4-8
21000 Brookpark Road
Cleveland Ohio 44135

Refer to LEW-17344.
