An advanced, highly compact thermal camera that traces its heritage to one now flying on NASA's Landsat 8 has been mounted in a corner of NASA's next Robotic Refueling Mission 3 (RRM3). From its position in the payload it will image and videotape Earth's surface once the SpaceX Dragon resupply vehicle delivers the payload to the orbiting outpost in November.

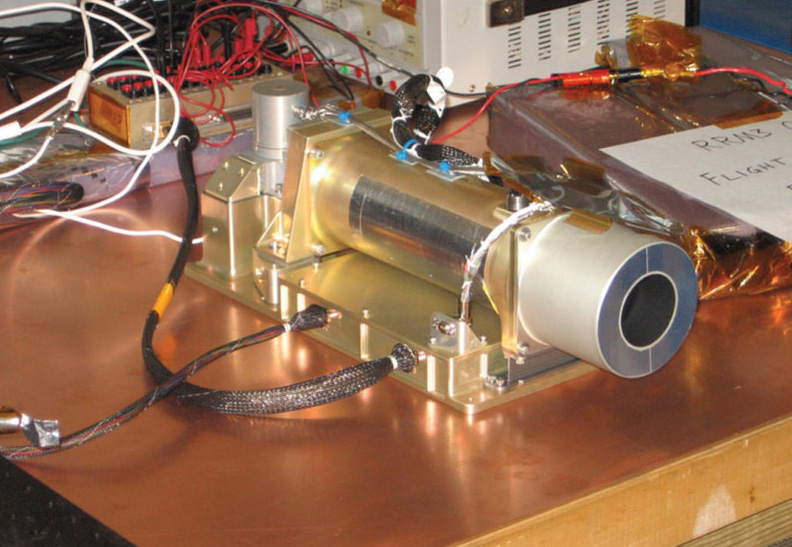

This image shows the advanced detector technology that will be demonstrated on NASA's upcoming robotic servicing demonstration mission. (Image courtesy of NASA)

While RRM3 demonstrates its specially developed satellite-servicing tools manufactured by NASA's Satellite Servicing Projects Division, its hitchhiker companion, the Compact Thermal Imager, or CTI, will image and measure fires, ice sheets, glaciers, and snow surface temperatures. CTI will also measure the transfer of water from soil and plants into the atmosphere — important measurements for understanding plant growth. Many of the conditions that Earth scientists study, including these, are easily detected in the infrared or thermal wavelength bands.

CTI's enabling technology is a relatively new photodetector technology known as Strained-Layer Superlattice (SLS). In addition to being very small, measuring nearly 16 inches long and six inches tall,

SLS consumes little power, operates at liquid-nitrogen temperatures, is easily fabricated in a high-technology environment, and is inexpensive.

The detector technology is also quickly and easily customized for different applications. The Goddard Detector Development Laboratory recently fabricated a 1,024 × 1,024-pixel SLS array and plans to increase its size to 2,048 × 2,048 pixels in the very near future.

Another enabling technology that CTI and its SLS detectors will employ is the Goddard-developed SpaceCube 2.0, a powerful hybrid computing system that will control the instrument and process the images and video that it takes while in orbit.

The demonstration's goal is to raise SLS's technology-readiness level to nine — or TRL-9 — meaning that it has flown in space and has demonstrated that it operates well under the extreme environmental conditions found there.

SLS is based on the Quantum Well Infrared Photodetector, or QWIP, technology that has been refined over more than two decades. The QWIP detectors are now operating on Landsat 8 and will be flying on the upcoming Landsat 9 Thermal Infrared Sensor Instrument, which Goddard scientists built to monitor the ebb and flow of land-surface levels and the health of vegetation — data that western states use to monitor water consumption.

Like its QWIP predecessor, SLS is a large-format detector. The arrays are fabricated on a semiconductor wafer. The wafer's surface consists of hundreds of alternating, very thin layers of differing materials that are epitaxially grown and tuned to absorb infrared photons and convert them into electrons. Only light with a specific energy, or wavelength, can release the electrons. A read-out chip directly mated to the array then converts the electrons to a voltage that a computer uses to recreate an image of the infrared source. The CTI can also capture video from its orbit nearly 249 miles above Earth's surface.

Compared with its QWIP predecessor, SLS detectors are 10 times more sensitive and operate over a broader infrared spectral range and at substantially warmer temperatures — 70K (about -334 degrees Fahrenheit) for the SLS array compared with 42K (about -384 degrees Fahrenheit) for the QWIP array.

The increase in operating temperature will have multiple positive effects on future missions. Infrared radiation is sensed as heat. Therefore, detectors designed to measure infrared wavelengths must be cooled to prevent heat generated inside an instrument or spacecraft from contaminating the measurements of the object being observed. That's why engineers use cryocool-ers and other devices to keep the detector arrays and other critical instrument components as cold as necessary.

Because the array can operate at warmer temperatures, its cooling system is smaller and consumes less power. In the future, these attributes will lead to smaller satellites, increased longevity, shorter build cycles, and lower cost, according to the researchers.
