Engineers at the University of California San Diego have developed a miniature, ultra-low power injectable biosensor that could be used for continuous, long-term alcohol monitoring. The chip is small enough to be implanted in the body just beneath the surface of the skin and is powered wirelessly by a wearable device, such as a smartwatch or patch. The goal of this work is to develop a routine, unobtrusive alcohol and drug monitoring device for patients in substance abuse treatment programs.

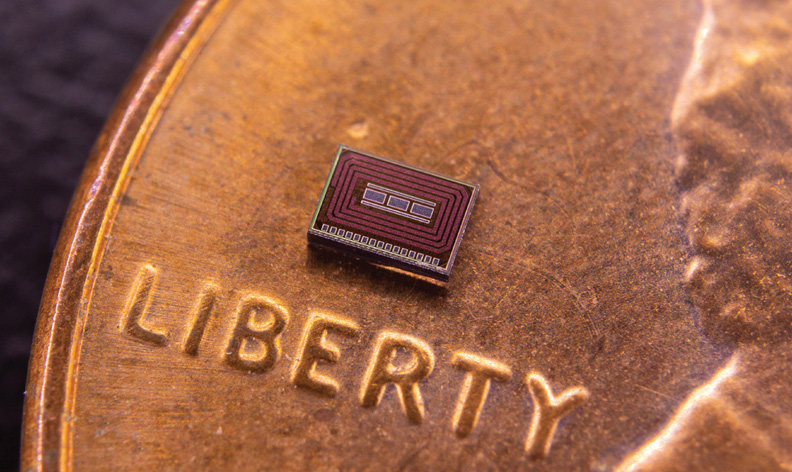

Alcohol monitoring chip is small enough to be implanted just under the surface of the skin. (Image courtesy of David Baillot/UC San Diego Jacobs School of Engineering)

One of the challenges for patients in treatment programs is the lack of convenient tools for routine monitoring. Breathalyzers, currently the most common way to estimate blood alcohol levels, are clunky devices that require patient initiation and are not that accurate. A blood test is the most accurate method, but it needs to be performed by a trained technician. Tattoo-based alcohol sensors that can be worn on the skin are a promising new alternative, but they can be easily removed and are only single-use. A tiny injectable sensor — that can be administered in a clinic without surgery — could make it easier for patients to follow a prescribed course of monitoring for extended periods of time.

The biosensor chip measures roughly one cubic millimeter and can be injected under the skin in interstitial fluid — the fluid that surrounds the body’s cells. It contains a sensor that is coated with alcohol oxidase, an enzyme that selectively interacts with alcohol to generate a byproduct that can be electrochemically detected. The electrical signals are transmitted wirelessly to a nearby wearable device such as a smartwatch, which also wirelessly powers the chip. Two additional sensors on the chip measure background signals and pH levels. These get canceled out to make the alcohol reading more accurate.

The researchers designed the chip to consume as little power as possible — 970 nanowatts total — which is roughly one million times less power than a smartphone consumes when making a phone call. The chip is also designed to minimize the heat generated in the body or battery.

One of the ways the chip operates on such ultra-low power is by transmitting data via a technique called backscattering. This occurs when a nearby device like a smartwatch sends radio frequency signals to the chip, and the chip sends data by modifying and reflecting those signals back to the smartwatch. The researchers also designed ultra-low power sensor readout circuits for the chip and minimized its measurement time to just three seconds, resulting in less power consumption.

The chip was tested in vitro with a setup that mimicked an implanted environment. This involved mixtures of ethanol in diluted human serum underneath layers of pig skin. For future studies, the researchers are planning to test the chip in live animals.

The researchers are working with CARI Therapeutics, a startup based in the Qualcomm Institute Innovation Space at UC San Diego, and Dr. Carla Marienfeld, an addiction psychiatrist at UC San Diego who specializes in treating individuals with substance abuse disorders, to optimize the chip for next generation rehab monitoring. They are also developing versions of this chip that can monitor other molecules and drugs in the body.

For more information, contact Liezel Labios at 858-246-1124, This email address is being protected from spambots. You need JavaScript enabled to view it..
