Flaps can significantly alter wing aerodynamics for high lift generation. Conventional flaps are mainly deployed for takeoff and landing, but are not suitable for in-cruise flight. It is widely speculated that birds and insects utilize their wing flexibility, particularly at the trailing edges, for effective control in different regimes. For example, the avian wing geometries of mergansers and owls possess a single layer of feathers extended from an airfoil section of their wings, which improves the global aerodynamic characteristics. Avian wing geometry inspired the concept of a static extended trailing edge (SETE), where the main airfoil is extended at the trailing edge by attaching a flexible polymer membrane with suitable length and rigidity. Based upon experimental results and CFD simulation, it was determined that if SETE was implemented on a fixed-wing aircraft, it had the potential to improve cruise flight aerodynamic efficiency up to 10% and reduce fuel consumption up to 5%.

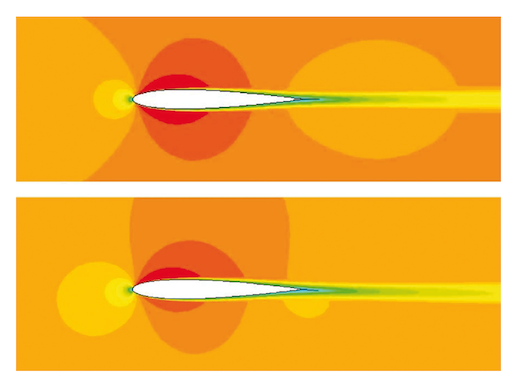

CFD simulation shows the asymmetry of the flow field induced by SETE where wake is turned downward, indicating a deflected momentum stream tube and generation of additional lift.

Applied to a typical aluminum airfoil on a fixed-wing aircraft, the technology involves adding a flexible strip that can adjust itself to the airflow to obtain drag reduction. Alternatively, sensors and actuators can be used for feedback control to make adjustments to the strip to optimize drag reduction. Depending on specific applications, the strip could be made of an aluminum plate, polymer membrane, composite sheet, or smart material plate. The effects of SETE on the wing aerodynamics are mainly due to modifications of the airfoil camber and of the flow structure at the trailing edge. The resulting improvement in aerodynamic efficiency leads to greater fuel efficiency and vibration control. For small aircraft like unmanned aerial vehicles (UAVs), the device can prevent flow separation, which can lead to stalling. The figure shows the asymmetry of the flow field induced by SETE where wake is turned downward, indicating a deflected momentum stream tube and generation of additional lift. The wake structure is not appreciably altered, indicating that the parasite drag is not significantly affected. This SETE airfoil system can be used in fixed-wing aircraft, helicopters, wind turbines, and UAVs.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: http://technology.nasa.gov/patent/TB2016/LAR-TOPS-146.
