NASA Langley Research Center has developed a breakthrough technology called Safeguard that can alleviate hazards with unmanned aircraft (UA) flying beyond their authorized perimeters and into no-fly zones. Safeguard works by continuously detecting a UA’s proximity to virtual perimeters established around no-fly zones (i.e., stay-out or stay-in regions and altitude limits), and taking action to guarantee the perimeters are not breached.

The key to the design is streamlined functionality that has been formally verified to guarantee detection of possible perimeter violations. Safeguard is applicable to both rotary- and fixed-wing systems, and substantially outperforms embedded geo-fences in terms of reliably and dependably stopping excursions into no-fly zones. Safeguard has the potential to provide a means to comply with pending regulatory directives for geo-limitation for a burgeoning UA industry.

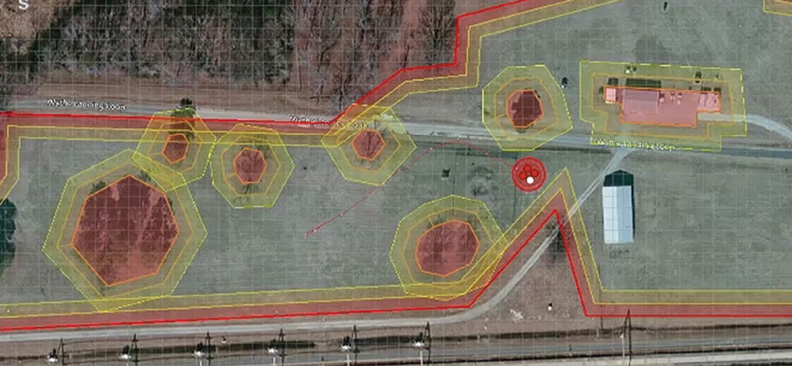

Ground station display of containment system boundaries during flight. (NASA)

Safeguard is an independent avionics system that can be easily ported to virtually any UA. The current prototype weighs approximately 1 pound (without hardware optimization). The invention innovations include formally verified algorithms to monitor and predict impending boundary violations through flight termination trajectory estimation, and a system architecture that facilitates performance certification.

The system can be configured without sole reliance on the Global Positioning System (GPS) to avoid known problems with GPS inaccuracies and unavailability. It is independent of the UA and any onboard components, such as the autopilot, for physical and logical separation from non-aviation-grade systems. The perimeter boundaries are described using polygons, which can approximate almost any shape, and there are practically no limits to the number of shapes and boundaries. The algorithms for establishing the validity of a boundary and for detecting proximity to all defined boundaries are based on rigorous mathematical models that have been formally verified.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link here for more information.
