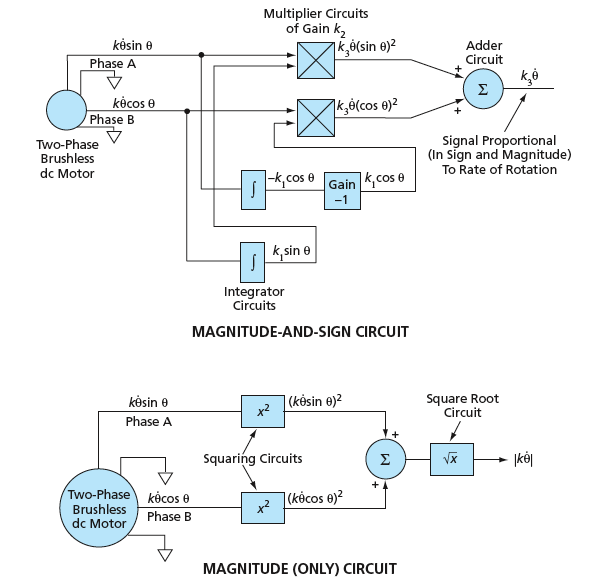

The upper part of the figure illustrates the major functional blocks of a direction-sensitive analog tachometer circuit based on the use of an unexcited two-phase brushless dc motor as a rotation transducer. The primary advantages of this circuit over many older tachometer circuits include the following:

  • Its output inherently varies linearly with the rate of rotation of the shaft.
  • Unlike some tachometer circuits that rely on differentiation of voltages with respect to time, this circuit relies on integration, which results in signals that are less noisy.
  • There is no need for an additional shaft-angle sensor, nor is there any need to supply electrical excitation to a shaft-angle sensor.
  • There is no need for mechanical brushes (which tend to act as sources of electrical noise).
  • The underlying concept and electrical design are relatively simple.
These Analog Tachometer Circuits perform straightforward operations on the back-emf outputs of a brushless dc motor to generate voltages proportional to the rate of rotation of the shaft.

This circuit processes the back-electromagnetic force (back-emf) outputs of the two motor phases into a voltage directly proportional to the instantaneous rate (sign · magnitude) of rotation of the shaft. The processing in this circuit effects a straightforward combination of mathematical operations leading to a final operation based on the well known trigonometric identity (sin x)2 + (cos x)2 = 1 for any value of x. The principle of operation of this circuit is closely related to that of the tachometer circuit described in "Tachometer Derived From Brushless Shaft-Angle Resolver" (MFS- 28845), NASA Tech Briefs, Vol. 19, No. 3 (March 1995), page 39. However, the present circuit is simpler in some respects because there is no need for sinusoidal excitation of shaft-angle resolver windings.

The two back-emf signals are kθ̇sin θ for phase A and kθ̇cos θ for phase B, where k is a constant that depends on the electromagnetic characteristics of the motor, θ is the instantaneous shaft angle, and the overdot signifies differentiation with respect to time. Note that θ̇ is the quantity that one seeks to measure.

Each back-emf signal is fed to one of two inputs of a multiplier circuit of gain k2 dedicated to its respective phase. Each of these signals is also integrated with a suitable time constant and gain to obtain a voltage of k1sin θ for phase A and –k1cos θ for phase B (where k1 is a constant that incorporates the combined effects of the gain and the time constant). The output of the integrator for phase B is inverted to obtain a voltage k1cos θ. Each of these signals is fed to the other input terminal of the multiplier circuit for its respective phase.
