A microwave-cavity applicator has been developed for coating multiple fibers by chemical vapor deposition (CVD). A prototype of the applicator was used to deposit silicon carbide onto carbon fibers; the design of the applicator can just as well be optimized for coating fibers made of other materials, and for depositing coating materials other than SiC.

Fibers Are Pulled Through Reaction Chambers filled with CVD reagent gases in a resonant microwave cavity. The microwave field heats the fibers to the CVD reaction temperature. Although four reaction chambers are shown here, more or fewer could be included. The curved mirror and lens can be used for optical monitoring of the process.

There are two conventional techniques for CVD on fibers. In one technique, a fiber is pulled through a chamber that contains CVD reagent gases. The fiber enters and leaves the chamber through mercury electrodes that also serve as gas seals. The fiber is heated to the reaction temperature by an electrical current applied through the mercury electrode/seals. The disadvantages of this technique are that it is limited to electrically conductive fibers, each reaction chamber can accommodate only one fiber at a time, and the toxicity of mercury poses a hazard. In the other conventional technique, a fiber is heated in a waveguide-type microwave applicator. Although this technique is not limited to electrically conductive fibers and does not involve mercury, it, too, is limited to one fiber per applicator, and the waveguide applicator is intrinsically energy-inefficient because its proper operation depends upon absorption of a substantial portion of the incident microwave power in a dummy load.

The present microwave-cavity applicator overcomes the disadvantages of the applicators used in both conventional techniques: It can be used to coat multiple fibers, the fibers can be electrically conductive or nonconductive, there is no need for mercury, and microwave energy is utilized more efficiently than in the older waveguide/dummy-load microwave-applicator.

The enhancement in energy efficiency is achieved by use of a resonant microwave cavity and by positioning the fibers in the cavity so as to cause only a small deviation of the electromagnetic field from the empty-cavity normal mode while causing the fibers to absorb a large fraction of the microwave power that enters the cavity. The positioning is especially critical for coating fibers of carbon and other lossy materials; typically, such fibers should be placed near an electric-field node.

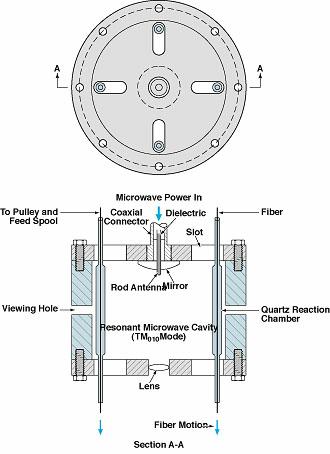

The figure is a simplified drawing of the applicator. The major structural component is a circular cylindrical microwave cavity. Microwave power is supplied through a coaxial transmission line and coupled into the cavity by a coaxial rod antenna.

The electromagnetic field in the chamber is excited in a close approximation of a TM0N0 mode, where N is a positive integer. (The mode would be purely TM0N0, were it not for the small perturbations introduced by the objects described below.) The TM0N0 mode is axisymmetric; therefore, to expose multiple fibers to identical microwave conditions, one need only take care to position the fibers and other objects symmetrically about the axis of the cavity.

The cavity contains multiple (four in the example of the figure) reaction chambers in the form of tubes made of quartz or other low-loss dielectric material. The reaction chambers are placed at equal angular intervals and nominally at the same radius. In operation, reagent gases are made to flow through the reaction chambers while the fibers are pulled through the reaction chambers and heated to the CVD reaction temperature by the microwave field.

Efficient utilization of the incident microwave power depends critically on good impedance matches from the transmission line through the antenna to the partially filled cavity, then to the fibers. The length of the rod antenna can be adjusted for an impedance match from the transmission line to the chamber. The fibers must be positioned at an optimum radius, which is nearer or farther from an electric-field node, depending on whether the fibers are more or less lossy. Slots in the end plates of the cavity accommodate adjustments in the radial positions of the reaction chambers and thus of the fibers.
