A rectangular integrated-circuit focal-plane array of 640 × 486 GaAs/AlxGa1 -xAs quantum-well infrared photodetectors (QWIPs) constitutes the image sensor in an experimental long-wavelength infrared camera. This is the first long-wavelength infrared camera containing photodetectors in a focal-plane array that enables imaging in a format similar to that of standard television. The camera, which is sensitive to wavelengths between 8 and 9 µm, can be operated in a staring, snapshot, or video mode.

Until now, state-of-the-art long-wavelength infrared photodetectors have been made from HgCdTe. Difficulties associated with the HgCdTe material system - especially, nonuniformity of devices in arrays - have prevented the fabrication of HgCdTe photodetectors in 640 × 486 arrays with sufficient pixel-to-pixel uniformity to obtain images of acceptable quality in the 8-to-12-µm region of the infrared spectrum. The development of the present camera was guided by the conjecture that by using large-band-gap materials like GaAs and AlxGa1 - xAs, which can be grown and processed easily, one should be able to fabricate large, relatively uniform arrays of QWIPs to detect light at wavelengths between 6 and 25 µ.

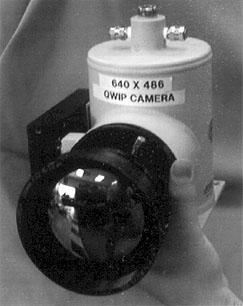

Figure 1. A QWIP Camera here is held by hand.

The QWIPs in the present camera are of the bound-to-quasi-bound type, for which the thermionic component of dark current is less than for other types. [This topic was discussed in more detail in "Bound-to-Quasi-Bound Quantum-Well Infrared Photodetectors" (NPO-19633), NASA Tech Briefs, Vol. 22, No. 9 (September 1998), page 54. The basic multiple-quantum-well (MQW) structure of the QWIP array is a stack of 50 identical quantum-well bilayers. Each bilayer comprises (1) a 45-Å-thick well layer of GaAs n-doped at a density ≈ 5× 1017 cm -3 and (2) a 500-Å-thick barrier layer of Al0.3Ga0.7As. The MQW structure is sandwiched between 0.5-µm-thick top and bottom contact layers of GaAs doped similarly to the well layers.

All of the aforementioned layers were grown on a semi-insulating GaAs substrate by molecular-beam epitaxy. A 300-Å-thick Al0.3Ga0.7As stop-etch layer was grown on top of the top contact layer for use in fabricating a cross-grating structure to couple light into the array. [The cross-grating-coupler concept was described in "Cross-Grating Coupling for Focal-Plane Arrays of QWIPs" (NPO-19657), NASA Tech Briefs, Vol. 22, No. 1 (January 1998), page 6a.] A 0.7-µm-thick GaAs cap layer was grown on top of the stop-etch layer. The cross-grating structure was fabricated by photolithography and dry chemical etching.

The array of 640 × 486 photodetectors, with a pitch of 25 µm and a pixel size of 18 × 18 µm2, was then formed by wet chemical etching through the MQW layers into the bottom contact layer. The cross gratings on the tops of the detectors thus formed were covered with Au/Ge and Au for ohmic contact and reflection (reflection at the top surface increases photoresponse, inasmuch as the device is operated in a back-illuminated configuration - that is, with illumination through the substrate). Indium bumps were evaporated onto the (Au/Ge)/Au layers, then the bumps were used to bond (hybridize) the array to a silicon-based complementary metal oxide/semiconductor (CMOS) integrated-circuit 640 × 486 readout multiplexer. The QWIP-array/readout-circuit hybrid was then mounted along with an antireflection-coated, 100-mm-focal-length germanium lens to form the camera (see Figure 1).

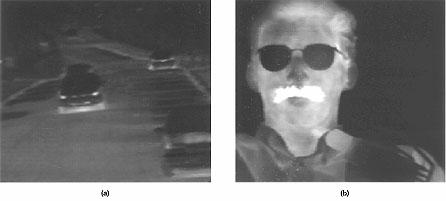

Figure 2. These Infrared Images were acquired when the camera was cooled to about 70 K and operated at a video frame rate of 30 Hz. The left image taken around midnight shows where the automobiles were parked during the daytime. The right image shows a man's face with a warm mustache, which was heated by a hot-air blower. It also shows hot air emanating from the air blower.

In tests, the camera produced excellent images that demonstrated high sensitivity (see Figure 2). The performance of the QWIP operating in a photoconductive (as distinguished from photovoltaic) mode at a reverse bias of 2 V, temperature of 70 K, and background temperature of 300 K was characterized by, among other things, a noise-equivalent differential temperature of 36 mK. The uncorrected nonuniformity (which includes a 1-percent nonuniformity of the readout circuit and a 1.4-percent nonuniformity of a cold stop in front of the array) was found to be only 5.6 percent.

This work was done by Sarath Gunapala, Sumith Bandara, John Liu, and Winn Hong of Caltech for NASA's Jet Propulsion Laboratory.
