NASA’s Langley Research Center has developed multiple ways for amorphous robots to autonomously move across a surface without needing conventional wheels or legs. Amorphous robots are useful in dusty and sandy environments in which greater mobility, passive shape changing, and immunity to dust and contamination are important. This includes both surface and subsurface robotic exploration. Amorphous robots are also useful in emergency and industrial activities, such as search and rescue (e.g., exploring rubble following an earthquake), and inspection of oil pipelines or sewage systems.

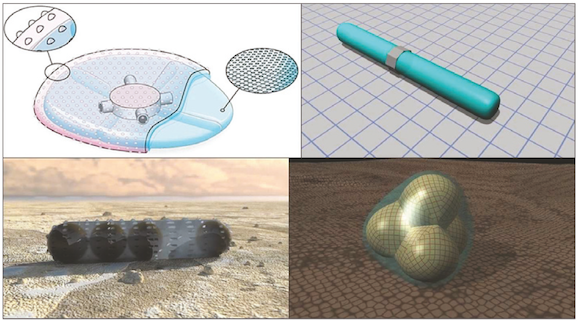

The four types of proposed robots, counter-clockwise from top left: Bladder bot (amoeba design), inchworm robot, electromagnetic sphere robot, and polymer cell robot.

Multiple locomotion techniques are proposed:

  • Bladder bot: This design involves a multi-stage process that makes use of a fluid-filled bladder with circulating high-viscosity fluid. Movement of the robot is not based on external moving parts, but rather is caused by the propulsion of the contained fluid by an internal valve system. The Bladder bot can be designed as an amoeba (see the figure), or with rotating fluid compartments.
  • Inchworm robot: This robot has a tube-like design. Locomotion occurs when internal ferro fluid moves through an electromagnetic ring. The motion resembles the way an inchworm moves.
  • Electromagnetic sphere robot: This design consists of multiple electromagnetic spheres inside a fluid-filled flexible bladder. Motion is initiated when the polarity of the electromagnets is altered sequentially to move the magnetic balls internally, thus causing the robotic locomotion.
  • Polymer cell robot: The polymer cell robot design consists of multiple polymeric cells encapsulated in a larger, flexible, outer shell. The cells individually either swell or contract, causing the center of gravity to change, and thus the object rolls accordingly.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: http://technology.nasa.gov/patent/TB2016/LAR-TOPS-156.
