Roboticists at the University of California, Berkeley, have designed a small robot that can leap into the air and then spring off a wall, or perform multiple vertical jumps in a row, resulting in what they claim is the highest robotic vertical jumping agility ever recorded. The agility of the robot opens new pathways of locomotion, and the researchers hope that one day this robot and other vertically agile robots can be used to jump around rubble in search and rescue missions.
To build the robot, which is known as Salto (saltatorial locomotion on terrain obstacles), the engineers studied one of the animal kingdom’s most vertically agile creatures, the galago. The galago can jump five times in just four seconds to gain a combined height of 8.5 meters (27.9 feet). It has a special ability to store energy in its tendons so that it can jump to heights not achievable by its muscles alone.
To compare the vertical agility of robots and animals, the researchers developed a new metric they defined as the height that something can reach with a single jump in Earth gravity, multiplied by the frequency at which that jump can be made. Salto’s robotic vertical jumping agility is 1.75 meters per second, which is higher than the vertical jumping agility of a bullfrog (1.71 m/s) but short of the vertical jumping agility of the galago (2.24 m/s). The Minitaur robot had the second highest vertical agility measured by the research team (1.1 m/s).
“Developing a metric to easily measure vertical agility was key to Salto’s design because it allowed us to rank animals by their jumping agility and then identify a species for inspiration,” said Duncan Haldane, a robotics Ph.D. candidate who led the work. Haldane is a student in the Biomimetic Millisystems Lab of Ronald Fearing, a professor of electrical engineering and computer sciences. The research was supported by the U.S. Army Research Laboratory under the Micro Autonomous Systems and Technology Collaborative Technology Alliance, and by the National Science Foundation.
Salto’s design is based on the power modulation used by the galago. Power modulation is an adaptation found in natural systems (and designed into some robotic systems) that increases the peak power available for jumping by storing muscular energy in stretchy tendons.
The galago jumps so well because its tendons are loaded with energy by its muscles when it’s in a crouched position. Adapting this process to Salto enabled its high vertical agility, including the wall jump. Inside Salto, a motor drives a spring, which loads via a leg mechanism to create the kind of crouch seen in the galago. By using power modulation, Salto doesn’t need to wind up before a jump; as soon as it jumps, Salto is ready to jump again.
Salto achieved 78% of the vertical jumping agility of a galago. Because of motor power limits, the best untethered robot before Salto had a vertical jumping agility of only 55% of a galago. “By combining biologically inspired design principles with improved engineering technology, matching the agile performance of animals may not be that far off,” Professor Fearing said.

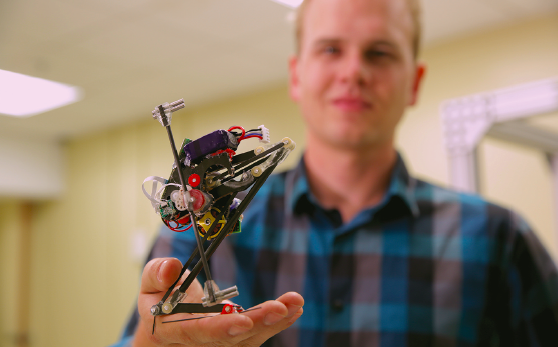

Salto weighs 100 grams (3.5 ounces), is 26 centimeters (10.2 inches) tall when fully extended, and can jump up to one meter. Salto’s maximum jump height was roughly 1.008 meters (3.3 ft.). For the wall jump, Salto attained an average height gain of approximately 1.21 meters (3.97 ft.). Other robots can jump higher than Salto in a single leap. For example, TAUB, a locust-inspired jumping robot, can leap to 10.5 feet (3.2 meters) in a single jump.
