Researchers at NASA's Marshall Space Flight Center have developed a novel method for interim, in-situ dimensional inspection of additively manufactured parts. Additive manufacturing processes currently have limited monitoring capabilities, offering users little to no options for mitigating the high levels of product and process failures.
This technology uses both infrared (IR) and visual cameras to allow users to monitor the build in real time, and correct the process as needed to reduce the time and material wasted in parts that will not meet quality specifications. The technology is especially useful for the in-process inspection of a part's internal features (e.g., fluid channels and passages) that cannot be easily inspected once the print is complete. The technology has the potential to enable the implementation of a closed-loop feedback system, allowing systems for automatic real-time corrections.
The technology combines different types of cameras strategically placed around the part to monitor its properties during construction. The IR cameras collect accurate temperature data to validate thermal math models, while the visual cameras obtain highly detailed data at the exact location of the laser to build accurate, as-built geometric models. Furthermore, certain adopted techniques (e.g., single to grouped pixel comparison to avoid bad/biased pixels) reduce false positive readings.

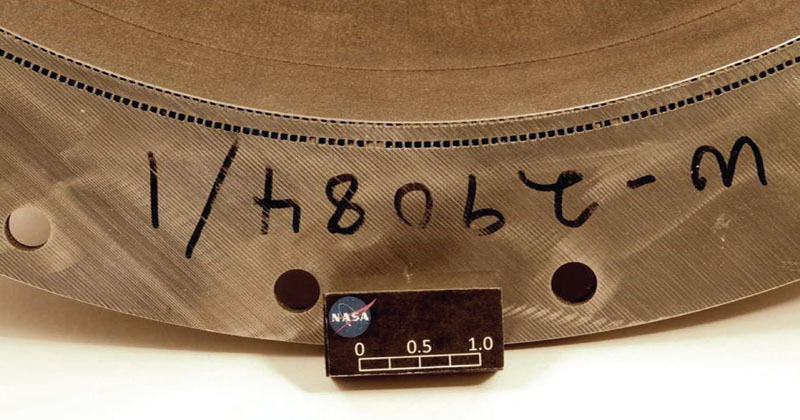

NASA has developed and tested prototypes in both laser-sintered plastic and metal processes. The technology detected errors due to stray powder sparking and material layer lifts. Furthermore, the technology has the potential to detect anomalies in the property profile caused by errors due to stress, power density issues, incomplete melting, voids, incomplete fill, and layer lift-up. Three-dimensional models of the printed parts were reconstructed using only the collected data, which demonstrates the success and potential of the technology to provide a deeper understanding of the laser-metal interactions. By monitoring the print, layer by layer, in real time, users can pause the process and make corrections to the build as needed, reducing material, energy, and time wasted in non-conforming parts.
