NASA Langley Research Center has developed a test station capable of in-situ testing of material deposition and layer adhesion in an extrusion additive manufacturing process. The technology addresses the problem of monitoring part quality during the 3D printing process. It includes methods that can be readily integrated into an extrusion apparatus to provide in-situ feedback for closed-loop processing in that apparatus. The novelty is that testing happens in-situ as the component is being built. Testing during the building process allows users to adjust the print parameters to control the quality of the fabricated part.

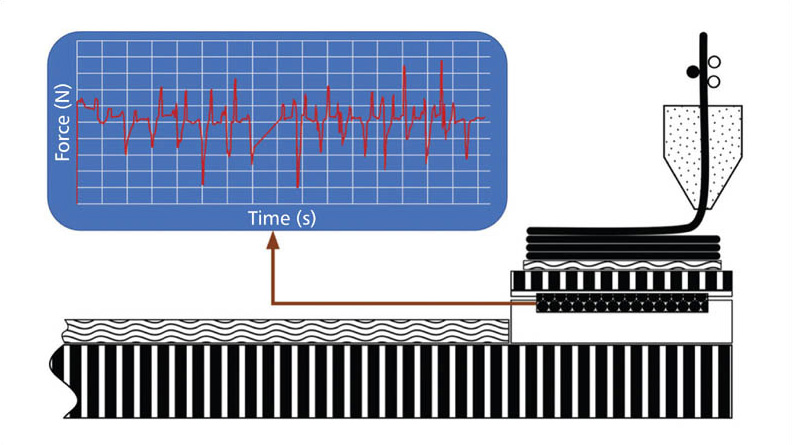

Prototype of the adhesion test station to prevent part defects. (NASA)

The test station consists of an extrusion head and a print bed equipped with one or more load cells for measuring the forces exerted as material is deposited. The force data is combined with information on the motion of the print head and bed to determine the actual rate of material deposition and adhesion between layers of material.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link here for more information.
