NASA has developed a class of low-density, flexible ablators that can be fabricated into heat-shields capable of being packaged, stowed, and deployed in space. The key characteristics of this new ablative thermal protection system (TPS) are its flexibility, conformability, and tailor-ability. Flexibility allows the material to be stowed in the shroud of a launch vehicle and deployed in space, without compromising functionality. Conformability allows the material to be attached to a curved surface without precise and expensive machining. Tailor-ability allows the density and composition to be optimized for the requirements. This flexible TPS can be used to cover and thermally protect a large, blunt shape that provides aerodynamic drag during hyper-velocity atmospheric flight. It can be used with minimal modification for large aeroshells whose deployment relies mainly on mechanical means and through inflation. Such devices are called Hypersonic Inflatable Aerodynamic Decelerators (HIADs). Large blunt body aeroshells may be used to deliver large payloads (40 metric tons) to the surface of Mars.

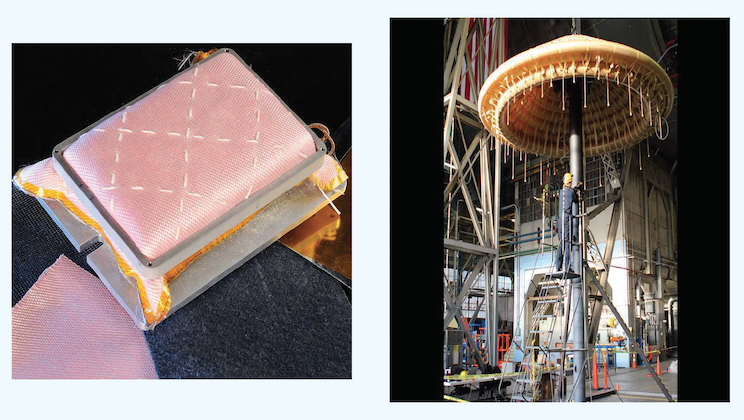

The thermal protection for HIADs (left), and HIADS testing at Ames Research Center (right).

The low-density, flexible ablators are comprised of a polymer resin embedded in a fibrous substrate, with a density range of 0.2 g/cm3 to 0.6 g/cm3 to date.

The polymer resin thermally decomposes during ablation. The resin can be a thermosetting resin, a thermoplastic polymer, or alternatively, a co-cured mixture. The fibrous substrate is flexible or conformable to a curved surface, with high thermal stability. The thickness of the fibrous substrate is between 1.3 and 7.6 cm, where the diameters of the fiber are between 7 and 25 micrometers. Embodiments of the fibrous substrates can include various woven, stitched, or loosely packed carbon, polymer, and ceramic felts as high-temperature substrates. One feature of this innovation is that it can withstand a range of heating rates with the upper limit approaching that of NASA rigid ablators. The amount and composition of polymer resin can be readily tailored to specific mission requirements. This technology offers a simple and versatile manufacturing approach to produce large areas of heat shields that can be relatively easy to attach on the exterior of spacecraft.

Possible applications include space exploration, systems engineering, thermal protection systems, materials engineering, and mechanical engineering.

NASA is actively seeking licensees to commercialize this technology. Please contact the Technology Partnerships Office at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: http://technology.nasa.gov/patent/TB2016/TOP2-215.
