NASA Langley Research Center has developed a metallic material that can be embedded into structural alloys to enhance nondestructive evaluation (NDE) of a structure. Current NDE tools, such as eddy current probes and others, can have some difficulties detecting small flaws in certain materials and structures. Also, using them can be costly, time-consuming, and labor-intensive, often resulting in significant downtime in the case of examination of machinery and vehicles. This innovation is to embed particles that react to strain with easily detected acoustic emissions and change in magnetic properties.

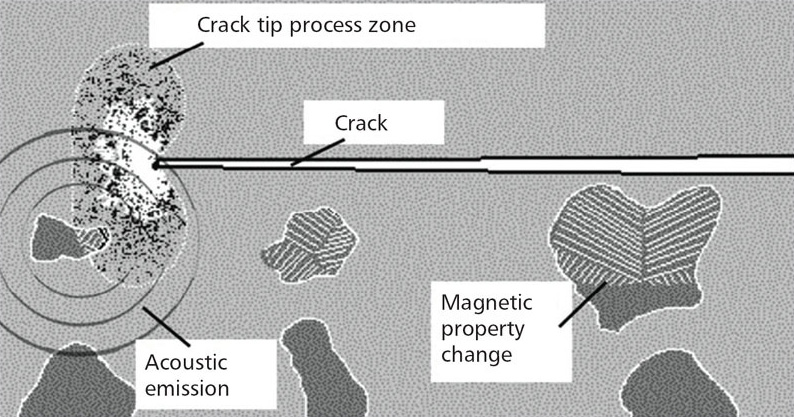

Damage process zone interacting with sensory particles.

While almost all advancements in NDE focus on improving the NDE equipment and techniques, any testing is inherently limited by the response of the materials being tested. This technology seeks to improve the response of the material itself by embedding shape memory alloy (SMA) particles in the metallic structural alloy in a manner that does not compromise the structural integrity of the material.

These SMA particles undergo a martensitic phase change (crystallographic change) in response to strain (e.g., a crack tip causing local deformation). The phase change produces an acoustic emission and a change in magnetic properties that can easily be detected and monitored, providing a means for enhanced NDE. The advantage is either that 1) the technology makes available existing NDE techniques that were not applicable before because of the type of structural material being used (the particles add new physics to the base structure), or 2) the technology enhances NDE because the SMA particles create conditions that are easier to detect damage relative to the equivalent level of damage in a structure without particles.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: here
