Experiments have shown that with suitable choices of critical dimensions, planar arrays of bundles of carbon nanotubes (see figure) can serve as high-current-density field emitter (cold-cathode) electron sources. Whereas some hot-cathode electron sources must be operated at supply potentials of thousands of volts, these cold-cathode sources generate comparable current densities when operated at tens of volts. Consequently, arrays of bundles of carbon nanotubes might prove useful as cold-cathode sources in miniature, lightweight electron-beam devices (e.g., nanoklystrons) soon to be developed.

Prior to the experiments, all reported efforts to develop carbon- nanotube-based field-emission sources had yielded low current densities — from a few hundred microamperes to a few hundred milliamperes per square centimeter. An electrostatic screening effect, in which taller nanotubes screen the shorter ones from participating in field emission, was conjectured to be what restricts the emission of electrons to such low levels. It was further conjectured that the screening effect could be reduced and thus emission levels increased by increasing the spacing between nanotubes to at least by a factor of one to two times the height of the nanotubes. While this change might increase the emission from individual nanotubes, it would decrease the number of nanotubes per unit area and thereby reduce the total possible emission current. Therefore, to maximize the area-averaged current density, it would be necessary to find an optimum combination of nanotube spacing and nanotube height.

The present concept of using an array of bundles of nanotubes arises partly from the concept of optimizing the spacing and height of field emitters. It also arises partly from the idea that single nanotubes may have short lifetimes as field emitters, whereas bundles of nanotubes could afford redundancy so that the loss of a single nanotube would not significantly reduce the overall field emission.

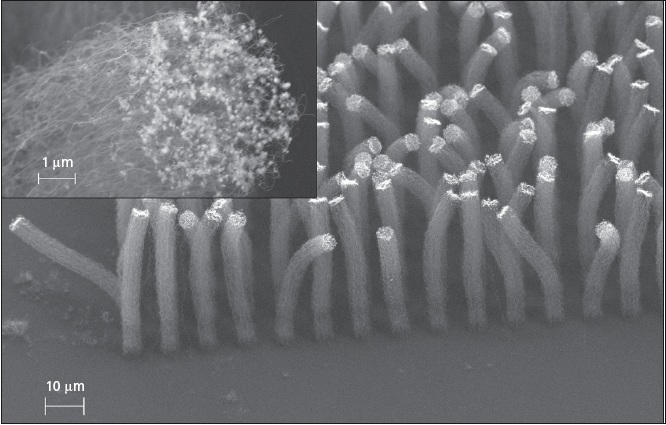

This Scanning Electron Micrograph shows bundles of carbon nanotubes, each 70 ¼m high and 5 ¼m in diameter. The gaps between adjacent bundles are about 5 ¼m wide. The bundles stand up because their constituent nanotubes support each other. The inset is a magnified image of the top of one showing individual nanotube tips.

In preparation for the experiments, planar arrays of bundles of carbon nanotubes having various bundle diameters, bundle heights, and bundle spacings were fabricated. The fabrication process can be summarized as follows: Electron-beam lithography was used to form planar arrays of iron dots having various thicknesses and having diameters and inter-dot spacings corresponding to the desired diameters and spacings of the carbon-nanotube bundles. The dots served as catalysts for the growth of carbon nanotubes: Bundles of multi-walled 20-nm-diameter carbon nanotubes were grown on the iron dots by chemical vapor deposition. The average height of the bundles was 70 ± 2μm. The heights of the bundles were found to depend on the thicknesses of the iron dots. The tallest bundles (112 μm high) were found on iron dots 8 μm thick.

In the experiments, field emission from these arrays was measured in a vacuum chamber by use of a 100-μm-diameter probe anode. The highest nondestructive area-averaged current densities (about 1.5 to 1.8 A/cm2) were observed on arrays of bundles of 1- to 2-μm diameter and spacings of 5 μm at an applied electric field of about 4.5 V/μm.
