A broadband phase-contrast wave-front sensor has been proposed as a real-time wave-front sensor in an adaptive-optics system. The proposed sensor would offer an alternative to the Shack-Hartmann wave-front sensors now used in high order adaptive-optics systems of some astronomical telescopes. Broadband sensing gives higher sensitivity than does narrow- band sensing, and it appears that for a given bandwidth, the sensitivity of the proposed phase-contrast sensor could exceed that of a Shack-Hartmann sensor. Relative to a Shack-Hartmann sensor, the proposed sensor may be optically and mechanically simpler.

As described below, an important element of the principle of operation of a phase-contrast wave-front sensor is the imposition of a 90° phase shift between diffracted and undiffracted parts of the same light beam. In the proposed sensor, this phase shift would be obtained by utilizing the intrinsic 90° phase shift between the transmitted and reflected beams in an ideal (thin, symmetric) beam splitter. This phase shift can be characterized as achromatic or broadband because it is 90° at every wavelength over a broad wavelength range.

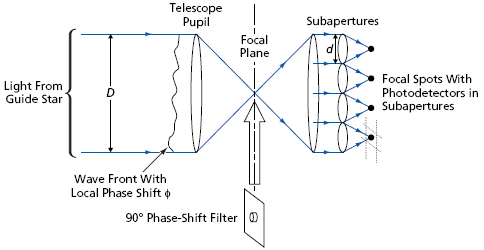

Figure 1. Phase-Contrast Imaging would use 90° phase shifting to generate phase feedback for adaptive optics.

The phase-contrast approach was originally devised by Frits Zernike for microscopy as a means of obtaining intensity images from such phase objects as transparent biological samples. samples. Figure 1 schematically illustrates an adaptation of the phase-contrast approach to real-time wave-front sensing for adaptive optics. The incident light from a guide star can be described in terms of a pupil field function Aexp(if), where A is an aperture function that expresses the effect of the shape and size of the telescope pupil and f is the difference between the actual instantaneous phase and the nominal (e.g., planewave) phase of the wave front at a given position within the pupil. If the pupil were simply re-imaged, the phase signal would not normally be observable. To make the phase signal observable, one reasons as follows:

Assuming a small-signal approximation (f << 1), the phase part of the pupil field function could be approximated as 1 + if. Hence, the phase-difference (diffracted) component would be 90° out of phase with the larger undiffracted component. To a first approximation, the undiffracted rays would be localized within the central ˜?/D portion of the telescope focal plane (where ? is wavelength and D is the diameter of the primary mirror or lens of the telescope), while the diffracted rays that contribute to the phase component would impinge on the telescope focal plane at off-axis positions. If a ±90°-phase-shift filter (e.g., a dielectric disk of suitable thickness) having approximately the diffraction-limited size ?/D were placed at the focal point, then the undiffracted component would be shifted by ±90° and would thereby be brought into phase (or phase opposition) with the diffracted component. As a result, the phase component would become observable as a small variation in intensity across the pupil, superposed on the bright, uniform illumination of the undiffracted component. In the small-signal approximation, the total intensity in the re-imaged pupil would be proportional to 1±2f, the sign of 2f depending on whether the focal-spot filter advances or retards the phase.

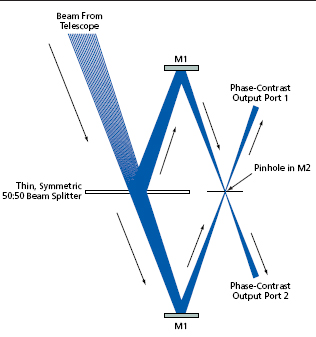

Figure 2. A Broad-Band Phase-Contrast Wave-Front Sensor, shown here schematically, can be realized by using the intrinsic properties of a beam splitter to give an achromatic 90°-phase-shifting element.

Figure 2 schematically illustrates an optical assembly, according to the proposal, for implementing the 90°-phase-shift filter needed in a phase-contrast sensor like that of Figure 1. An incident beam from a telescope would strike a 50:50 beam splitter. The reflected and transmitted beams would be recombined by an arrangement of mirrors, schematically represented by flats M1 in Figure 2; one component is directed through a diffraction- limited pinhole in two-sided mirror M2. The pinhole would pass the central ˜?/D portions of the beams, while the M2 surfaces surrounding the pinhole would reflect the off-axis portions. The total beam going to the output port on each side of M2 would comprise the desired combination of central rays and 90°-shifted off-axis rays. The output beams could be directed into telescope-pupil-re-imaging optics equipped with a chargecoupled- device (CCD) or similar quantum detector, as in Figure 1. Optionally, the phase-contrast images contained in both beams could be combined optically or electronically to increase the signal-to-noise ratio.
