The pseudoslit spectrometer is a conceptual optoelectronic instrument that would offer some of the advantages, without the disadvantages, of prior linear- variable etalon (LVE) spectrometers and prior slit spectrometers. The pseudoslit spectrometer is so named because it would not include a slit, but the combined effects of its optical components would include a spatial filtering effect approximately equivalent to that of a slit.
Like a prior LVE spectrometer, the pseudoslit spectrometer would include an LVE (essentially, a wedgelike narrowband- pass filter, the pass wavelength of which varies linearly with position in one dimension) in a focal plane covering an imaging planar array of photodetectors. However, the pseudoslit spectrometer would be more efficient because unlike a prior LVE spectrometer, the pseudoslit spectrometer would not have to be scanned across an entire field of view to obtain the spectrum of an object of interest that may occupy only a small portion of the field of view. Like a prior slit spectrometer, the pseudoslit spectrometer could acquire the entire spectrum of such a small object without need for scanning. However, the pseudoslit spectrometer would be optically and mechanically simpler: it would have fewer components and, hence, would pose less of a problem of alignment of components and would be less vulnerable to misalignment.
The pseudoslit spectrometer would include an input optical component that would both spectrally disperse the light

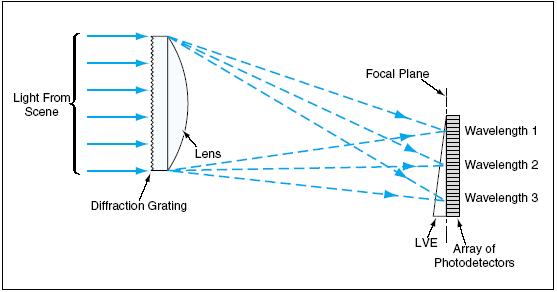

from the scene under observation and focus the light onto the array of photodetectors. The input optical element could be, for example, concave diffraction grating, a combination of a lens and a prism, or, as shown in the figure, a combination of a lens and a diffraction grating. The LVE would be custom fabricated so that, at the focal plane, its spatial variation of pass wavelength would match the spectral dispersion pattern created by the grating. As a result of this match, the LVE would select the spectrum of only one slitlike strip in the field of view.
Hence, position along one axis of the array (in the case of the figure, the axis perpendicular to the page) would correspond to position along the strip in the scene, whereas position along the other axis (the vertical axis in the figure) would correspond to the wavelength of light. In other words, the pseudoslit spectrometer would measure the spectrum of a narrow strip in the scene. To acquire data to construct a spectral image of the entire scene, one would have to scan the pseudoslit spectrometer to scan the strip across the scene.
This work was done by Dennis C. Reuter and George H. McCabe of Goddard Space Flight Center. For further information, access the Technical Support Package (TSP) free on-line at www.techbriefs.com/tsp under the Physical Sciences category. GSC-13806
