Innovators at NASA’s Armstrong Flight Research Center have developed a highly accurate method for measuring liquid levels using optical fibers. Unlike liquid level gauges currently on the market that rely on discrete measurements to give broad approximations of liquid levels, Armstrong’s innovative fiber optic method provides precise and accurate measurements. Specifically, Armstrong’s novel method is capable of providing measurements at 1/4-inch intervals within a tank. This significant leap forward in precision and accuracy in liquid level sensing offers significant benefits to many industries. Originally designed by NASA to monitor a rocket’s cryogenic fuel levels, this technology can be used in many medical, industrial, and pharmaceutical applications.

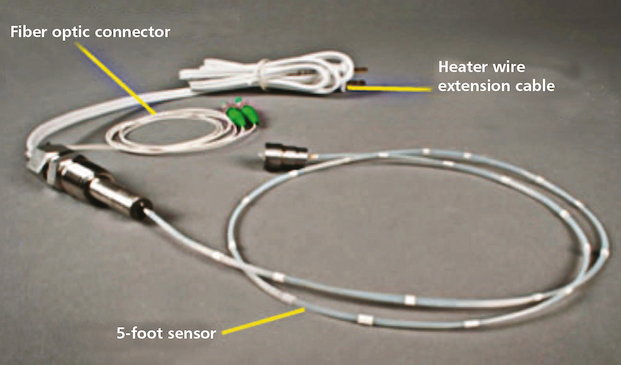

The technology uses a resistive heater wire bundled with an optical fiber.

The sensing system uses fiber optic Bragg sensors located along a single fiber optic cable. These sensors actively discern between the liquid and gas states along a continuous fiber, and can accurately pinpoint the liquid level. The technology uses a resistive heater wire bundled with the optical fiber. The heater is pulsed to induce a local temperature change along the fiber, and the fiber Bragg grating data is used to monitor the subsequent cooling of the fiber. The length of fiber in the liquid cools more rapidly than the portion of the fiber in the gas above the liquid. The measurement system accurately establishes the location of this transition to within 1/4-inch.

Armstrong’s liquid level sensing technology was originally developed to measure cryogenic liquid levels in rockets, and it represents a significant advancement in the state of the art in this application. Conventional methods for measuring cryogenic liquid levels rely on cryogenic diodes strategically placed along a rod or rack. The diodes are mounted in pre-selected, relatively widely spaced positions along the length of a rod, resulting in limited, imprecise data. Furthermore, each diode on the rod has two wires associated with it, which means a single system may require a large number of wires. That makes installation, connectivity, and instrumentation cumbersome.

The Armstrong technology provides liquid measurements with much greater precision, achieving measurements at 1/4-inch intervals. Furthermore, the streamlined system uses just two wires, which greatly simplifies installation and instrumentation. It is not susceptible to electromagnetic interference (EMI), and can be used in corrosive or toxic liquids without damaging the fiber or contaminating the liquid. Due to its accuracy and ease of use, Armstrong’s measurement system offers important advantages for a wide range of applications beyond cryogenic liquids.

This technology has applications in aerospace, especially liquid-fuel launch vehicles and satellites; chemical or refinery plants to monitor the facility’s fluid flow; industrial tanks to measure level of cryogenic or other liquids (e.g., for liquid natural gas storage and transport); food and beverage manufacturing; pharmaceutical manufacturing; medical or hospital operations; and any other industries that require level measurement within large containers, including materials that are difficult to measure (e.g., cryogenic liquids).

NASA is actively seeking licensees to commercialize this technology. Please contact the Technology Transfer Office at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: http://technology.nasa.gov/patent/TB2016/DRC-TOPS-16 .
