Additive manufacturing, or 3D printing, is a rapidly growing field in which solid objects can be produced layer-by-layer. This technology will have a significant impact in many areas including industrial manufacturing, medical, architecture, aerospace, and automotive. The advantages of additive manufacturing are reduction in material costs due to near-net-shape part builds, minimal machining required, computer-assisted builds for rapid prototyping, and mass-production capability.

Traditional thermal nondestructive evaluation (NDE) techniques typically use a stationary heat source such as flash or quartz lamp heating to induce a temperature rise. The defects such as cracks, delamination damage, or voids block the heat flow and therefore cause a change in the transient heat flow response. There are drawbacks to these methods.

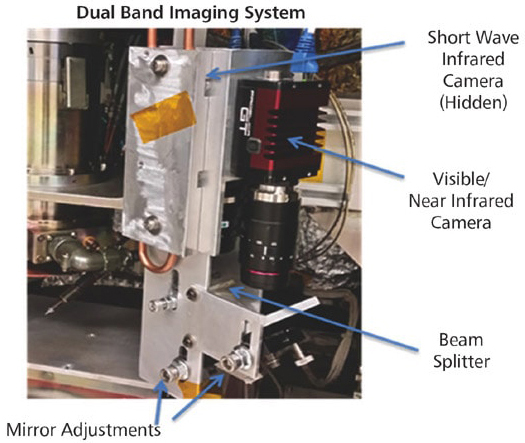

A working prototype of the inspection system with infrared sensor.

Researchers at NASA Langley Research Center have developed a much more reliable non-destructive evaluation method based on infrared thermography. The method provides transient temperature profiles of the surface, including the melt pool, at each step/layer. This system can measure material properties and detect defects during the additive manufacturing process.

It will allow for characterization of the deposition quality and also detection of deposition defects such as voids, cracks, and disbonds as the structure is manufactured layer-by-layer. The information, in the form of quantitative inspection images, can be archived with the manufactured part to document structural integrity. This is a more effective way of determining flaws or deposition quality during the build process.

NASA is actively seeking licensees to commercialize this technology. Please contact The Technology Gateway at This email address is being protected from spambots. You need JavaScript enabled to view it. or 757-864-1178 to initiate licensing discussions. Follow this link here for more information.
