Three Vibration/ Balancing Solutions for the Aviation Industry
SPONSORED BY: ![]()

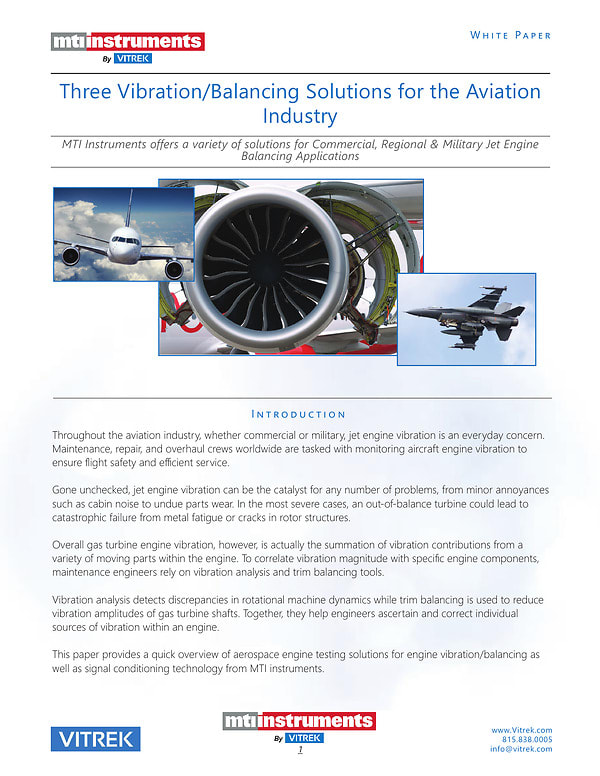

This white paper outlines how modern vibration analysis and balancing systems help aviation maintenance teams detect, isolate, and correct jet engine vibration. It explains how overall engine vibration is composed of contributions from multiple rotating components and why precise spool-level analysis is critical. The paper presents three complementary solutions: advanced turbine vibration analyzer/balancing systems, tachometer signal conditioning technology, and portable vibration and trim balancing tools. Emphasis is placed on tracking filters, vibration surveys, phase measurement, and portability. Together, these technologies reduce engine wear, minimize unnecessary removals, lower maintenance costs, and improve aircraft safety and operational reliability.
Don't have an account?
Overview
The white paper titled "Three Vibration/Balancing Solutions for the Aviation Industry" discusses the critical role of vibration analysis and balancing in ensuring the safety and efficiency of jet engines in both commercial and military aviation. It highlights that unchecked jet engine vibration can lead to various issues, from minor cabin noise to severe mechanical failures due to metal fatigue or rotor cracks.
Modern turbine engines typically consist of two or three concentric shafts, known as spools, which are aerodynamically coupled and operate at variable speeds. Each spool is equipped with tachometers and vibration sensors to monitor rotational velocity and vibration levels. However, the detection of these signals can be challenging due to noise and varying signal types across different engines.
To address these challenges, manufacturers have developed turbine vibration analyzer and balancing systems, such as the PBS-4100 series from MTI Instruments. These systems are designed for both production and overhaul facilities, as well as portable applications for installed engines. They utilize advanced signal conditioning technology to facilitate accurate vibration measurement and analysis.
The paper outlines the process of conducting a vibration survey, where the engine speed is cycled from idle to maximum and back, allowing the system to measure and plot vibration contributions from each spool. If vibration levels exceed predefined limits, operators are alerted, and solutions can be implemented, such as adding offset weights to balance the spools.
Overall, the white paper emphasizes the importance of advanced vibration analysis and balancing solutions in the aviation industry, which streamline testing procedures, enhance engine reliability, and ultimately contribute to flight safety. By leveraging these technologies, maintenance crews can quickly identify and address vibration issues, reducing the risk of engine failures and costly removals.
