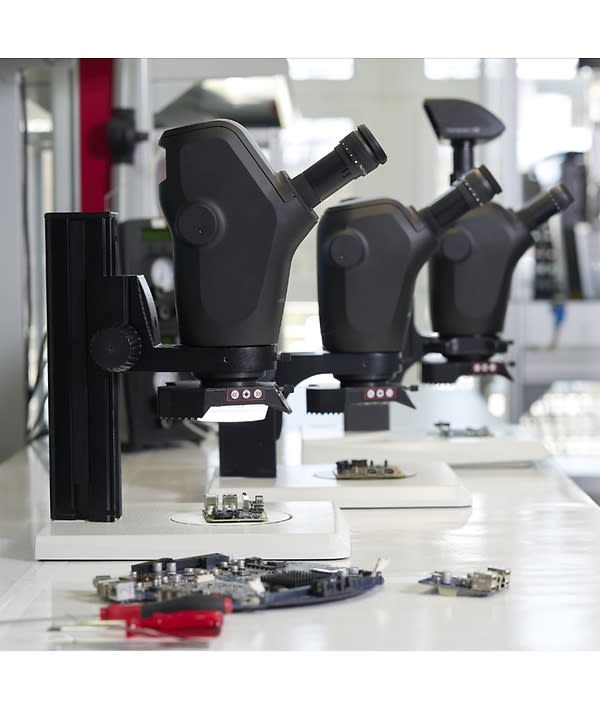

Document cover
White Paper: Test & Measurement

How to Choose the Optimal Stereo Microscope Setup

SPONSORED BY:

Stereo microscopes are essential when precise 3D visualization of samples is required in laboratories or production environments. Because users may spend extended periods examining, observing, documenting, or dissecting samples, it's crucial to carefully select both the microscope and its accessories. This article aims to help users choose the optimal stereo microscope setup by addressing important considerations such as technical specifications and ergonomics, explaining how these elements affect performance and suitability in various applications.

Topics:
Data Acquisition Test & Measurement

Don't have an account?

Overview

This Leica Microsystems document, "Key Factors to Consider When Selecting a Stereo Microscope," provides a comprehensive guide for choosing an optimal stereo microscope setup tailored to specific user applications and sample types.

Stereo microscopes are prized for their ability to generate a natural 3D perception of samples, making them ideal for inspection, rework, quality control, failure analysis, research and development, specimen handling, and education. Given that users often spend extensive time engaged with these microscopes, selecting one that matches user needs and ergonomics is critical.

The document is structured around key factors influencing microscope performance and user experience:

  1. Understanding Needs and Applications: Consider the types and sizes of samples (opaque, transparent, reflective), whether documentation or measurements are needed, the working environment, user count, and budget constraints. Modular solutions may be initially more costly but offer long-term adaptability and cost savings.

  2. Zoom Range, Magnification, Field of View, and Working Distance: The total magnification results from multiplying the objective lens, zoom optics, and eyepiece magnifications. A larger zoom range enhances flexibility from overview to fine details. The field of view size influences sample orientation, while working distance affects usability, especially for manipulation under the lens.

  3. Depth of Field, Resolution, and Numerical Aperture (NA): Depth of field (the vertical focus range) is inversely related to NA and magnification, which in turn affects resolution. Leica’s FusionOptics technology balances a large depth of field with high resolution by combining two beam paths—one optimized for depth and one for resolution—delivering an optimal 3D image.

  4. Optical Quality: High-quality optics reduce chromatic and spherical aberrations that cause color fringes and distortions. Choices include achromatic (corrected for two wavelengths) for general use and apochromatic lenses (corrected for three wavelengths) for demanding tasks requiring accurate true-color imaging and minimal color distortions. Plan correction improves image flatness over the field of view.

  5. Illumination: Proper illumination is key for contrast and true color representation. Combination of incident light (for opaque samples) and transmitted light (for transparent ones) with various modes—brightfield, oblique, darkfield—enhance visualization of sample features, even below resolution limits.

  6. Ergonomics: Addressing user posture and comfort reduces strain-related injuries. Features like adjustable eyepiece heights, ergonomic accessories such as ErgoTube eyepiece tubes, and easy-to-operate controls improve efficiency and well-being during prolonged use.

The document concludes with references supporting the technical details and emphasizes that a careful assessment of sample types, user needs, optical requirements, and ergonomics ensures the selection of the optimal stereo microscope solution, enhancing both performance and user satisfaction.
