Improved pressure-relief valves have been developed for systems that contain gases and liquids in a variety of pneumatic, hydraulic, and cryogenic applications. These valves could prove especially beneficial in both cryogenic and noncryogenic systems that contain oxygen. The improved valves are designed to suppress instabilities that shorten operational lifetimes and create hazards in the operation of older pressure-relief valves.
A typical older pressure-relief valve exhibits instability that can result in oscillation ("chatter"), which degrades the valve beyond the normal anticipated wear of parts. Oscillation can result in hard impact; in the presence of oxygen, hard impact can lead to ignition, with resultant catastrophic failure of the valve and possibly of the entire system. A valve of the present improved type is stable over its entire operational range from fully closed to fully open. It does not oscillate or generate hard impacts; instead, it opens and closes softly.
The key to stable, soft-opening/soft-closing operation is a concept of upstream control. A conventional "pop"-type pressure-relief valve is characterized as operating under downstream control: Once the valve has opened, the flow is controlled mainly by an effective cross-sectional area downstream of the valve seat. In a valve of the improved type, the flow-limiting cross section remains upstream of the valve seat at all times, and so the valve is said to operate under upstream control.

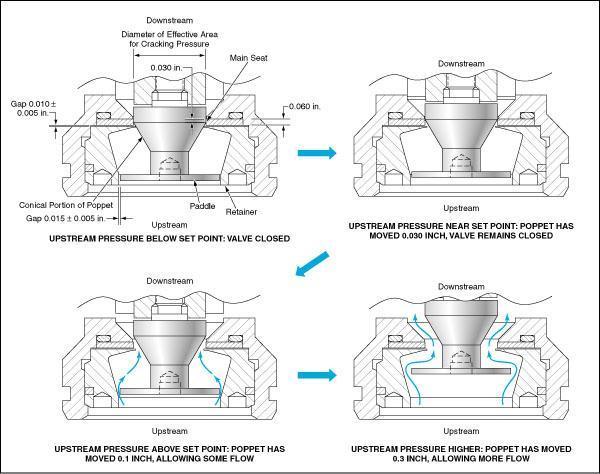

The figure illustrates the basic design and principle of operation of a valve of the improved type. As in a conventional relief valve, excessive upstream pressure opens the valve by lifting of a poppet from a seat in a valve body; however, the similarity with a conventional pressure-relief valve ends here. The poppet in the improved valve includes a conical portion and a paddle (essentially a disk) upstream of the conical portion. When the valve is closed and the upstream pressure is below the set point, the conical portion of the poppet engages about half the thickness of a main valve seat, forming a tight seal. In this condition, the paddle engages the wall of a cylindrical passage upstream of the main valve seat.
When the upstream pressure rises to approximately the set point, the poppet moves downstream a little, but the valve is not yet open; the conical portion of the poppet remains partly engaged with the main valve seat, while the paddle remains in the cylindrical passage in the retainer. As the pressure rises above the set point, the conical portion of the poppet moves out of the main valve seat and the paddle moves out of the cylindrical passage in the retainer. To ensure upstream control, the area of the annular opening between the main seat and the conical poppet surface must be made larger than the area of the annular opening between the paddle and the retainer; for this purpose, the angle of the conical inner valve-body surface immediately downstream of the main valve seat must be made greater than the angle of the conical inner valve-body surface immediately downstream of the cylindrical passage in the retainer.
The advantages of upstream control are:
- There are no adjustments other than the set point;
- There is a smooth transition from the fully closed to the fully open valve condition because there is minimal variation in density of fluid over a wide range of flow, and
- The upstream-control concept is amenable to mathematical modeling because the basic valve geometry (except for specific dimensions) is fixed. A user-friendly computer program based on a mathematical model of the valve dynamics can be used to design and select valves of this type for specific applications.
The improved valves offer several advantages over older pressure-relief valves, in addition to those mentioned above. Noise and wear are reduced through elimination of chatter. The risk of fire and explosion is reduced through elimination of hard impact, and the risk of uncontrolled venting of hazardous fluids is correspondingly reduced. Increased stability yields better performance, with wider operating ranges and better control. The basic valve design can be implemented in cartridge versions, so that it becomes unnecessary to remove entire valves from plumbing systems for overhaul or repair. The foregoing advantages translate to the additional advantage of lower life-cycle costs.
This Valve Operates Under Upstream Control in the sense that the flow-constricting cross section is the annulus between the paddle and retainer, upstream from the annulus between the poppet cone and the main valve seat. The few dimensions shown here are typical only; the dimensions for a specific application are chosen, with the help of a mathematical model of valve dynamics, to obtain stable operation.
This work was done by Peter A. Tartaglia, Brian L. Magnone, Larry Rayhon, and Richard Molesworth of Marotta Scientific Corp. for Stennis Space Center.
