Product of the Month

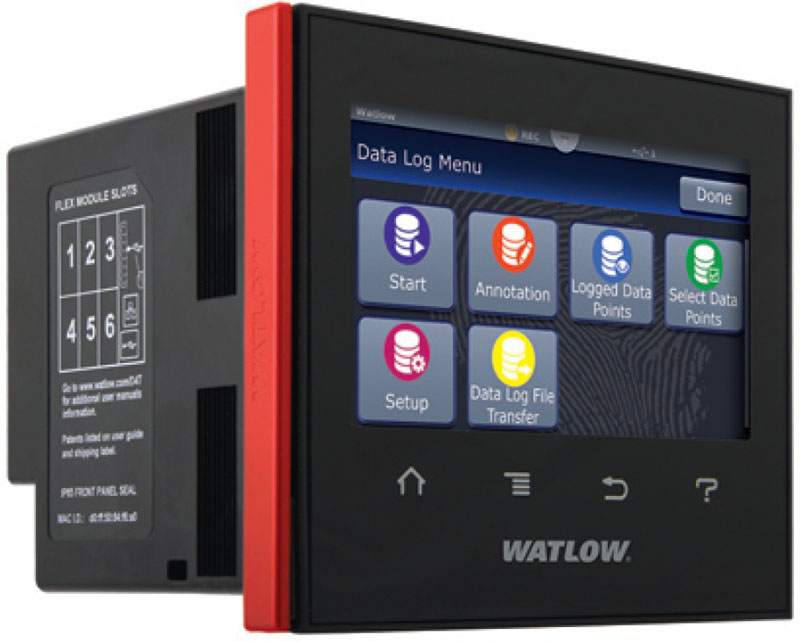

Watlow, St. Louis, MO, introduced the D4T with INTUITION^® data logger with a range of field-removable I/O modules. The data logger features a 4.3” color graphical touch panel with a high-resolution graphical user interface that allows channels, alarms, inputs, and outputs to be customized with user-defined names. The unit is programmable to show information in multiple languages, and enables users to choose encrypted, .CSV, or both types of file formats for tamperproof record needs. Users can select which parameters to log, from one to 128 points simultaneously, and where to store files — inside the controller, on a connected USB memory device, or to a connected PC anywhere in the world. The system records as fast as one time per 0.1 second, or as slow as one time per hour. The system is available with 1 to 24 channels, and is compatible with temperature, altitude, humidity, AC current, and other 0-10VDC or 0-20 mA process units. It connects with a controller via Ethernet, and offers communications options including Ethernet Modbus^® TCP and SCPI, and EIA-232/485 Modbus^® RTU.
