Wavy-planform rotor blades for helicopters have been investigated for the first time in an effort to reduce noise. Two of the main sources of helicopter noise are blade/vortex interaction (BVI) and volume displacement. (The noise contributed by volume displacement is termed thickness noise.) The reduction in noise generated by a wavy-planform blade, relative to that generated by an otherwise equivalent straight-planform blade, affects both main sources: (1) the BVI noise is reduced through smoothing and defocusing of the aerodynamic loading on the blade and (2) the thickness noise is reduced by reducing gradients of thickness with respect to listeners on the ground.

Wavy-Planform Rotor Blades on a model helicopter in a reverberant wind tunnel were found to generate less noise than did rectangular-planform blades.

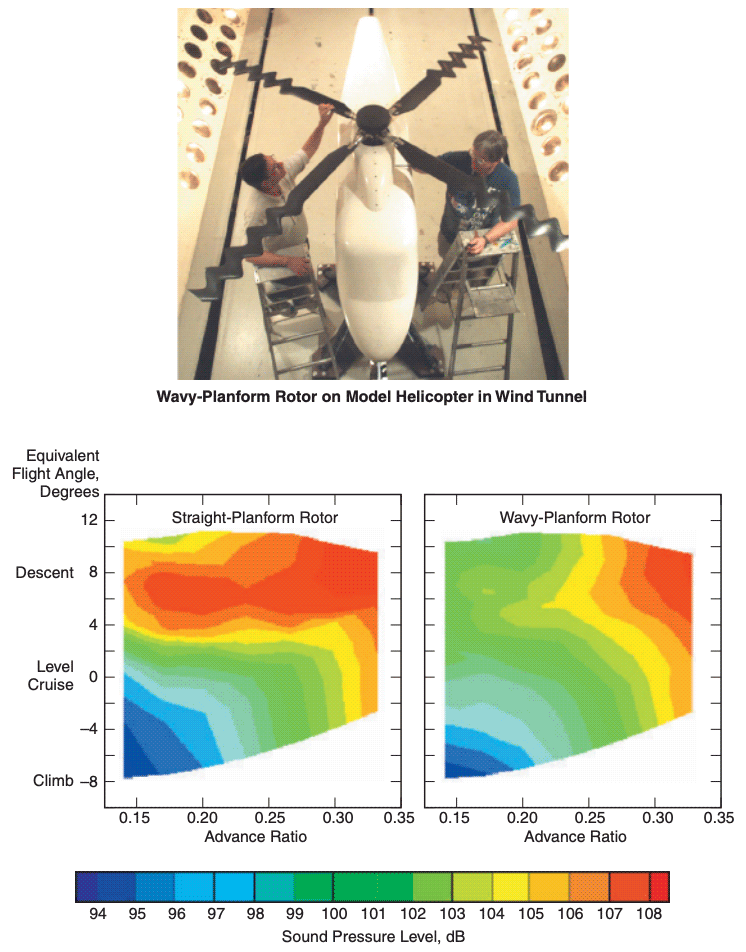

Noise tests were performed in a reverberant wind tunnel on a model helicopter (see photo). In the tests, sound-pressure levels were measured over a range of flight angles and advance ratios (the advance ratio is defined as the ratio between the horizontal speed of a helicopter and the speed of the tip of a rotor blade). Sound-pressure levels were also measured under the same conditions using a baseline rotor that had a rectangular-planform blade with linear twist.

The figure presents color contour plots of some of the data from the tests. These plots show that during descent (landing) flight conditions, which are most strongly dominated by BVI noise, sound-pressure levels of the wavy-planform blades were more than 4 dB below those of the rectangular planform blades. Some mild reduction in noise was also found for other flight conditions of climb and level cruise over all frequency ranges. Further testing and analysis of data will be needed to farther quantify reduction of noise, vibration, and performance benefits, leading eventually to refinements in the designs of wavy-planform blades.
