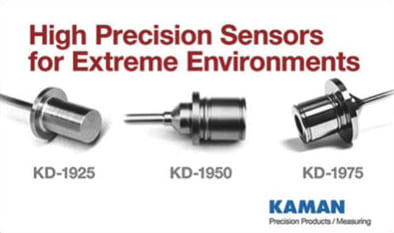

Extreme Environment Displacement Sensors and Systems

The Measuring Division of Kaman Precision Products, Inc (Colorado Springs, CO) announces the availability of its Extreme Environment high-precision displacement sensors and systems. With their rugged all-welded and hermetic construction, the sensors and systems are ideal for rocket and turbine engine validation testing and other applications that require high accuracy, high reliability, and structural integrity. These include nuclear reactors, steam and gas turbines, chemical processes, and high temperature processing.

Three separate systems are available, specifically designed for high pressure, low temperature, and high temperature conditions. Operating temperatures range from -320°F to +1000°F (+1200°F short term). Displacement systems withstand pressures up to 5000 pound-force per square inch (psi). Their dual-coil sensor design minimizes temperature effects. They are made with hermetically sealed, all laser-welded Inconel housings, use Inconel-jacketed, mineral-insulated cable, and are unaffected by environmental contaminants including corrosive gas or liquids. Booth: #1223

For Free Info Visit Here

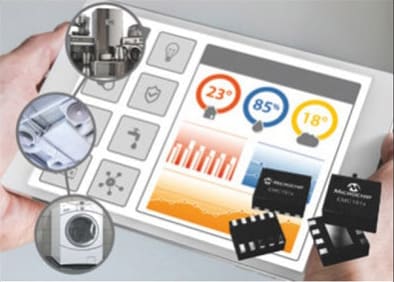

Low-power 1.8V Temperature Sensor Family

Microchip Technology (Chandler, AZ) announced five new 1.8V temperature sensors, including their smallest five-channel temperature sensor. The EMC181x temperature sensor family introduces system temperature rate-of-change reporting, a feature that provides advanced warning on how the temperature of a system is fluctuating. The sensor family offers a variety of remote channels at 1.8V operation to fit different design needs, ranging from two to five channels. It is ideal for applications migrating from 3.3V systems to lower voltage rails, such as battery operated IoT applications, personal computing devices, Field-Programmable Gate Arrays (FPGAs), and Graphics Processing Units (GPUs). It is also register and voltage compatible with Microchip’s popular 3.3V EMC14xx temperature sensors, making migration to 1.8V testable and achievable. With the three-channel sensor available in an 8-pin 2 × 2 mm footprint and the five-channel in a 10-pin 2 × 2.5 mm footprint, the sensors can also reduce the number of devices needed for remote temperature monitoring. Booth: #816

For Free Info Visit Here

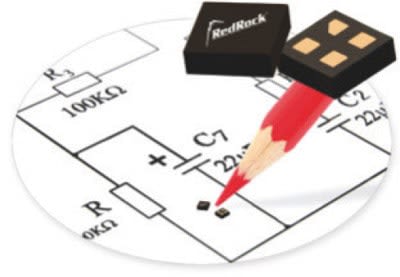

TMR Magnetic Sensors

The new RedRock® product line series from Coto Technology (North Kingstown, RI) reveals new features. Their tiniest, lowest-power sensor is even lower — down to 30nA of current consumption. Also featuring dual output and end-user toggleable “turbo” mode. Target applications: fluid level sensing, flow meters, utility meters, battery-powered medical devices, power tools, industrial automation, linear actuators. Booth: #415

For Free Info Visit Here

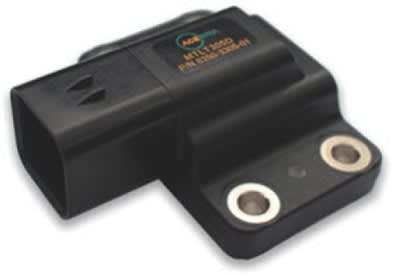

High Performance Dynamic Tilt Sensor Module

The MTLT305D tilt sensor module from ACEINNA (Andover, MA) uses advanced sensor fusion (Extended Kalman Filtering) and calibration algorithms to achieve 0.5-degree tilt and <10 milli-g acceleration accuracy in a wide variety of dynamic conditions. It is calibrated to accurately operate over a wide temperature range of -40C to +85C. The completely sealed compact module (65 × 66 × 27 mm) with integrated connector is perfect for rugged construction, off road, and agriculture applications. It offers high reliability, MTBF > 50k hours and is ITAR- free. Booth: #1635

For Free Info Visit Here

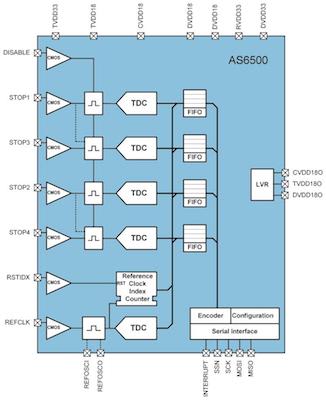

Time-to Digital Converter for Optical Ranging and 3D Scanning

The AS6500 high-resolution time-to-digital converter (TDC) from ams AG (Premstaetten, Austria) features CMOS inputs and compact packaging for space- and cost-constrained applications. It can measure time intervals as short as 5ns with 10ps precision. The AS6500 is based on the existing model TDCGPX2, offers resolution up to 10ps on four channels, and a sampling rate of up to 1.5Msamples/s. In virtual- and augmented-reality applications, real-time 3D image rendering is supported by high sampling speeds, and precision in one-centimeter detail. Operating in dual-channel high-resolution mode, it can achieve a maximum resolution of 10psrms with 5ns pulse-to-pulse spacing. Operating from a 3.3V supply, the AS6500 typically consumes just 60mW in normal operation, and draws 60μA in stand-by mode. Booth: #1130

For Free Info Visit Here

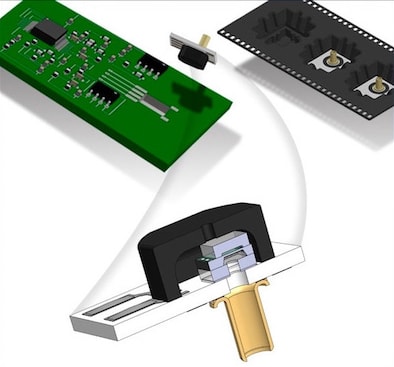

Uncompensated Piezoresistive Pressure Sensor

The RS Series uncompensated, packaged piezoresistive pressure sensor and transducer from Merit Sensor (South Jordan, Utah) is simple to integrate into your product. It is designed for the application of a wide range of pressures to the backside of the sensing element. Ideally a surface-mount device (SMD), the RS Series can also be easily soldered to wires, ribbon cables, and flex strips. The pressure port makes connecting the sensor to the source of pressure easy. This can be done via O-ring or tubing. It utilizes a piezoresistive Wheatstone bridge with a chemically etched silicon diaphragm and is RoHS compliant. Pressure range is 0 to 500psi (0 to 34.474bar) and temperature range is -40°C to +85°C. Booth: #333

For Free Info Visit Here

Piezoelectric Force Rings

Quartz, piezoelectric force rings from PCB Piezotronics (Depew, NY) output a high integrity signal under compressive force in cyclical loading applications. Force rings possess extreme stiffness and accuracy, making them ideal for measuring microsecond duration events common to metal forming equipment (crimp, bend, stake, or stamp), drop test, and product testing applications. All PCB piezoelectric force rings incorporate quartz crystals as the sensing element. Quartz is one of the most stable piezoelectric materials available, with stiffness ten times that of steel. The sensor’s internally preloaded quartz element makes real-time output at high frequencies possible. Each PCB force sensor is calibrated to NIST (National Institute of Standards and Technology) standards and ships with a serialized calibration certificate. Booth: #1118

For Free Info Visit Here

Low Power CO2 Sensor with I2C Interface

A challenge for CO2 sensors is that they need mains power to operate, thus incurring costs for cabling, and in the case of installations in existing buildings, redecoration. Gas Sensing Solutions (GSS) (Cumbernauld, Scotland) has solved this problem with its low power (3 mw) LED-based sensor technology. The sensor’s power requirements are so low that wireless monitors can be built that measure CO2 levels as well as temperature and humidity with a battery life of over ten years. Being wireless means that they can be placed wherever they are required with no need for cabling or disruption and simply relocated as needs change. With the new I2C interface, the CozIR®- LP can be easily integrated into an IoT network. Booth: #1039

For Free Info Visit Here

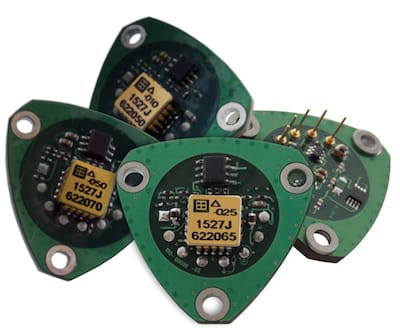

MEMS Inertial Accelerometer

Initially launched as a strictly ±25-g product, the Model 2227 MEMS inertial accelerometer series from Silicon Designs (Kirkland, WA) is now offered in both ±10 g and ±50 g ranges. In addition to its direct drop-in replacement compatibilities, in terms of industry standard form factor and pin configuration, with traditional quartz inertial accelerometers, Model 2227 Series units now include a built-in adjustable scaling factor. That allows an end-user to achieve greater accelerometer voltage output flexibility, at any specified g-range, of as much as 25%. The design combines two capacitive silicon sense elements and a precision custom CMOS integrated circuit. The elements and circuit are housed together within a compact, low mass, hermetically sealed LCC package and are assembled on a high-temperature open printed circuit board (PCB) with a circuit that converts the MEMS accelerometer differential output voltage into a level of current directly proportional to the amount of applied acceleration. Booth: #825

For Free Info Visit Here

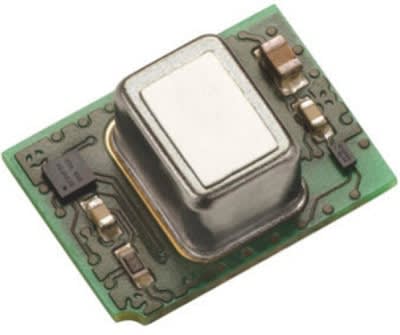

Miniaturized CO2 Sensor

Sensirion (Stafa, Switzerland) is announcing the SCD40 — a miniaturized CO2 and RH/T sensor that fits in a space of just one cubic centimeter. It utilizes the photoacoustic sensing principle and combines minimal size with maximum performance to open up numerous new integration and application possibilities. Due to its price-performance ratio, the SCD40 is especially well suited for high-volume and cost-sensitive applications.

The SCD40 footprint, at 12 × 12 × 7 mm3, has been miniaturized by a factor of 5 compared to its predecessor, the SCD30. Using the photoacoustic sensing principle, the dimensions of the optical cavity are drastically reduced without compromising sensor performance. Moreover, the SCD40 CO2 and RH/T incorporates a humidity and temperature sensor, thereby delivering two additional sensor outputs. It is intended to supply today’s and future CO2 sensing markets such as IoT, automotive, HVAC, appliances, and consumer goods.

Thanks to new energy standards and better insulation, buildings have become increasingly energy efficient, but at the cost of accelerated deterioration in air quality. Since high CO2 levels compromise human health and productivity, CO2 is a key indicator of indoor air quality. Air exchangers and smart ventilating systems in the commercial and the residential sector use CO2 sensors to regulate ventilation. Furthermore, CO2 sensors play an essential role in indoor air quality monitoring and can therefore be integrated into IAQ monitors, air purifiers, and smart thermostats. Booth: #324, M6

For Free Info Visit Here

Six Degrees of Freedom Sensor

Endevco/Meggitt (Irvine, CA) has released the model 7360A six degree of freedom (6DoF) sensor, which provides analog output for three axes of acceleration and three axes of rate sensors in a compact, roughly one-inch, cube. With this new sensor, professionals in automotive and aircraft development are now able to measure linear and rotational dynamics that previously required multiple sensors and much more space. Rather than having to make assumptions about these dynamic interactions, the 7360A provides reliable, empirical data to support the analytical results. It has five accelerometer ranges from 2g to 500g, six rate ranges from 100 deg/sec to 18,000 deg/sec, and 5,000g shock protection. It is calibrated in its final assembly configuration to ensure accurate performance. Booth: #625

For Free Info Visit Here

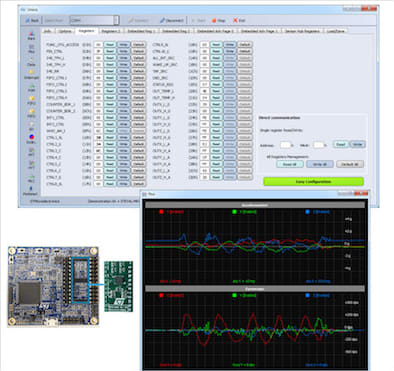

Improved GUI for Advanced Inertial Measurement Units

STMicroelectronics’ (Geneva, Switzerland) Unico GUI greatly simplifies configuring the finite state machine and machine learning core (FSM and MLC) logic of its latest Inertial Measurement Units (IMU), including the recently announced LSM6DSO and LSM6DSOX 6-axis modules. The FSM logic lets users run gesture and motion-recognition algorithms directly in the sensor for always-on convenience and low power consumption. The MLC implements machine-learning classifiers for real-time always-on motion and vibration pattern recognition. With Unico, GUI users can combine the module’s accelerometer and gyroscope data with inputs from additional external sensors, such as a magnetometer, for more sophisticated context-sensing capabilities.

When used in smartphones, wearables, or industrial devices it allows user-interface functions and context-aware apps to continue running while the main processor sleeps to maximize battery runtime. The LSM6DSO contains logic for up to 16 independent state machines, each generating a hardware interrupt activated by a specific motion pattern, while the LSM6DSOX also contains the logic to implement multiple-stage decision trees for machine-learning classification. Booth: #716, 722, 821

For Free Info Visit Here

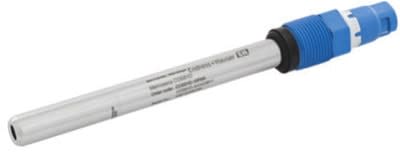

Dissolved Oxygen Sensor

Endress+Hauser (Greenwood, IN) is releasing the Memosens COS81D hygienic optical sensor for measuring dissolved oxygen in fermenters and bioreactors used in the food, pharmaceutical, and biotechnology industries, as well as in drinking water and boiler feedwater applications. It measures dissolved oxygen, gaseous oxygen, and temperature with accuracy up to ±0.2% and can operate in process temperatures from 15 to 280 °F and pressures from 0 to190 psi. The sensor connects to a transmitter via a cable that transmits an optical digital signal. With its compact stainless steel 12-mm design with lengths currently up to 220 mm, the sensor withstands CIP and SIP procedures and its low sampling volume makes it well suited for residual oxygen measurement in water treatment and boiler feedwater. When replacing the sensor, the user calibrates it in the lab, inserts it into the sensor holder assembly, and it’s ready to begin measuring. Booth: #830

For Free Info Visit Here

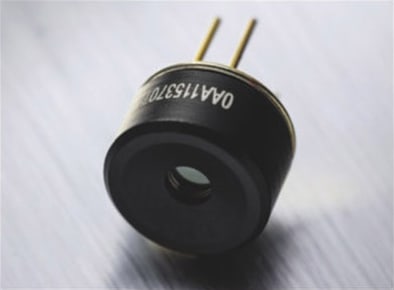

High Operating Temperature Thermal Sensor Array

Melexis (Tessenderlo, Belgium) announces a new version of its far infrared (FIR) thermal sensor array. The new device has lower thermal noise compared to the current MLX90640, an increased refresh rate of 64 Hz, and an elevated operating temperature up to 125°C for applications especially in harsh thermal conditions.

The new MLX90641 is a small 16 x 12-pixel IR array housed in an industry standard 4-lead TO39 package. It can accurately measure temperatures in the range -40°C to +300°C. Factory calibration ensures an accuracy of 1°C in typical measurement conditions. The high accuracy is further supported by a Noise Equivalent Temperature Difference (NETD) of 0.1 Krms. Two different field of view (FoV) options are available, a standard 55° × 35° and a wide angle 110° × 75°. It offers 192 FIR pixels, allowing for less powerful processors to be used, contributing to lower system overhead. Booth: #1022
