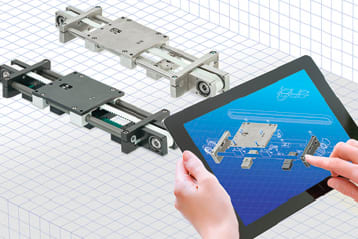

To simplify product selection of self-lubricating linear guides, igus (East Providence, RI) has developed a modular construction kit for belt-driven DryLin ZLW linear axes. The ZLW toolkit enables users to customize their solutions, including rail widths, system length, etc., even for small installation spaces. Cross beams, rails, and/or carriages are available in either aluminum or stainless steel to suit a wider range of application requirements. The ZLW system enables loads up to 165 lbf. to be lifted with stroke lengths of up to 3 meters (118"). Wide drive belts can also permit speeds of more than 5 m/s (16 ft./s), depending on the load. Underwater applications are possible via a special toothed belt.
