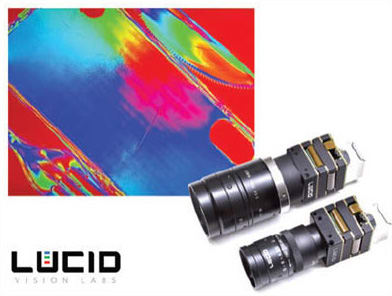

Polarization Camera

Lucid Vision Labs, Richmond, BC, Canada, announced the 5-megapixel Phoenix polarization camera that can be used to detect stress or defects in manufacturing of materials such as plastic, glass, and carbon fiber. The global shutter sensor, with a pixel size of 3.45 μm and frame rates of up to 24 fps, is based on the IMX250 Sony Pregius CMOS mono sensor with polarizing filter added to the pixel. The sensor has four different directional polarizing filters (0°, 90°, 45°, and 135°) on every four pixels. The camera performs on-camera processing using the four filters, and outputs both the intensity and polarized angle of each image pixel. The GigE PoE micro-compact camera measures 24 × 24 mm, and features NF-mount and lens options.

For Free Info Visit here .


Electronics Enclosures

ROLEC Enclosures, Bridgeville, PA, offers technoBOX ABS electronics enclosures in ten sizes ranging from 2.59 × 2.00 × 1.37” to 9.48 × 6.33 × 3.15”. The enclosures are suitable for a wide range of industrial electronics and electrical applications. Separate screw channels outside the enclosure’s interior maximize the space available for components. The beveled lid is recessed to accommodate a membrane keypad or front plate. The lid screws are made of corrosion-resistant stainless steel, and are captured to avoid accidental loss. Threaded screw bosses in the lid and base enable the installation of PCBs, mounting plates, and terminal rails. Options include external mounting brackets that can be turned by 90°.

For Free Info Visit here .


HD Video Camera

Toshiba Imaging Systems Division, Irvine, CA, introduced the JCS-HR5U ultra-compact CMOS HD video camera designed for scientific imaging. The single-piece, 1920 × 1080 high-definition video camera simultaneously displays through dual HDMI® and USB 3.0 outputs to both a monitor and PC in real-time, full-motion, 60 frames per second (fps). Outputs include USB 3.0 and HDMI image output. A settings menu allows for dynamic controls for gamma correction, edge enhancement, a 12-color matrix adjustment, and other camera parameters to optimize the video display under a wide range of lighting conditions and target samples. The camera features a 1/2.8” progressive-scan color CMOS sensor, and a C-mount lens mount.

For Free Info Visit here .


EMI/EMC Testing System

The EMCVu all-in-one system for EMI/EMC pre-compliance testing from Tektronix, Beaverton, OR, tests for electromagnetic interference (EMI) and electromagnetic compatibility (EMC). The system consists of real-time USB spectrum analyzers, powered through the USB connection. They are controlled by SignalVu-PC software running on a laptop or tablet that has been enhanced with optional EMCVu software to provide pre-compliance and troubleshooting capability in the same user interface. The software offers built-in support for standards, and pushbutton accessory selection and setup. It also includes automated ambient noise capture, multi-failure re-measurement, and harmonic markers for analysis.

For Free Info Click Here .


Thermal Switch

SCHURTER, Santa Rosa, CA, introduced a reflowable thermal switch device for thermal protection of power semiconductors such as MOSFETs, ICs, IGBTs, TRIACs, and SCRs. The device interrupts the circuit at a predefined temperature. It can be mounted using conventional reflow soldering techniques with temperature profiles up to 260 °C. After the solder process, the switch is mechanically activated by depressing the top into place, arming it to trip at 210 °C. It sustains operating currents up to 100 A at rated voltages of up to 60 VDC in a 6.6 × 8.8 mm package.

For Free Info Click Here .


TVS Diodes

Littelfuse, Chicago, IL, introduced the SP4208 Series discrete TVS diodes that integrate low-capacitance steering diodes with one or two avalanche breakdown diodes for unidirectional or bidirectional protection, respectively, to protect against electrostatic discharge (ESD) and lightning-induced surge events. The components can safely absorb up to 30A, and a minimum ±30 kV ESD. Low loading capacitance and high surge capability make it suitable for protecting telecommunication ports such as Ethernet and other highspeed data interfaces. The diodes feature low leakage current, and are halogen-free, lead-free, and RoHS-compliant. Applications include computers, instrumentation, and medical equipment.

For Free Info Click Here .

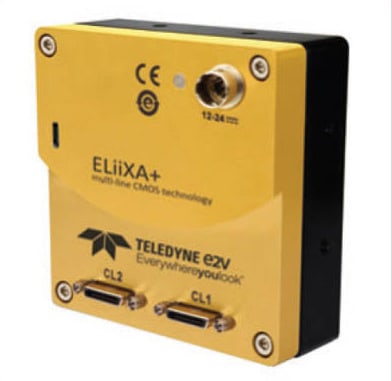

Line Scan Cameras

Teledyne e2v, Milpitas, CA, introduced ELiiXA+ trilinear line scan cameras. The 8k-pixel cameras are suited for industrial applications that require high color resolution and image sharpness such as electronics and PCB inspection. The trilinear configuration enables use of a multi-light setup to discriminate the light coming from different angles in a single scan. The cameras have a CameraLink interface and can be operated at up to 33 KHz with an 8k-pixel resolution. Using multiline sensors, the cameras can also be customized with different types of color filters.

For Free Info Click Here .

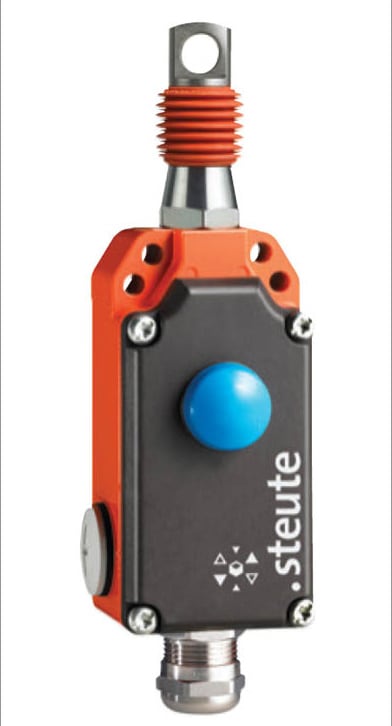

Pull Wire Switch

The Series ZS 71 emergency pull wire switch from STEUTE Industrial Controls, Ridgefield, CT, is equipped with snap-action, NC positive-break contacts for initiating an emergency stop along the length of the installed pull wire. Switching function occurs if actuating wire is pulled or breaks. It features a 35-meter reach; integral pushbutton reset; die-cast aluminum, powder-coated housing; and IP 69K ingress protection rating. Other features are 2 NC and 1 NO contact with double break, screw connection terminals, operating temperature range of -25 to +70 °C, and integral pushbutton release.

For Free Info Click Here .


Force Testing Systems

The L.S. Starrett Company, Athol, MA, introduced the Starrett L1 line of computer-based force testing solutions for applications ranging from load limit and distance testing, to break limit, time average, cyclic count and duration testing, and constant hold. Systems for computer-controlled force measurement, digital force gages, Starrett FMM digital force tester motorized test stands, manual test stands, and load cell sensors are offered. Six models in standard and extended travels are available, with testing capacities of 110 lbf, 330 lbf, and 550 lbf. Touchscreen control simplifies operation and a high-resolution display shows results in tabular and graphical formats. Tolerances can be applied for immediate pass/fail indication. Raw data and results can be exported to Excel for reporting and statistical analysis. Load measurement accuracy is better than 0.1% while distance position accuracy is better than 20 microns.

For Free Info Click Here .
