The size of a holographic data-storage system could be reduced by a proposed design modification that calls for replacement and repositioning of some optical components and the use of some of the components to perform dual functions. The modification would enable a substantial decrease in length with a small increase in width, yielding an overall decrease in volume.
The upper part of the figure schematically depicts a typical three-dimensional holographic data-storage system. A laser and a polarizing beam splitter are used to generate reference and image light beams, which are coherent with each other. These beams are made to interfere with each other in a holographic storage medium (e.g., doped LiNbO3). In the simplest case, the reference and image beams enter the storage medium perpendicularly to each other. The reference beam is not modulated on its way to the storage medium. However, the image beam is expanded, then the desired image is impressed on the beam during passage through a transmissive spatial light modulator. The image beam is then directed through a first Fourier-transform lens into the storage medium. During retrieval of a stored image, the image beam is blocked, and a second Fourier-transform lens projects the image onto a charged-coupled-device (CCD) camera.
The lower part of the figure illustrates this system as modified according to the proposal. Among other changes, one of the lenses would be eliminated and the second beam-expanding lens would also serve as the first Fourier-transform lens. During recording, the image beam would be modulated with the desired image and reflected back through this lens by a reflective spatial light modulator (instead of by a transmissive one as before). A second polarizing beam splitter would be placed between the two beam-expanding lenses; with the chosen combination of polarizations, this beam splitter would pass the expanding (rightward-propagating) beam but would reflect the modulated (leftward-propagating) image beam downward into the holographic storage medium. As before, the reference and image beams would enter the holographic storage medium at right angles to each other during recording. As before, a second Fourier-transform lens would be used during retrieval of a stored image. In this case, a conjugate image would be formed and would be reflected rightward onto a CCD.
This work was done by Kevin Heim of Caltech for NASA's Jet Propulsion Laboratory.
NPO-20347
This Brief includes a Technical Support Package (TSP).
Reducing the volume of a holographic data-storage system
(reference NPO20347) is currently available for download from the TSP library.
Don't have an account?
Overview

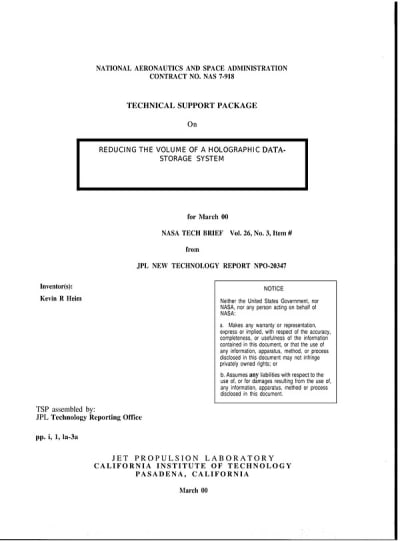

The document presents a novel approach to reducing the volume of holographic data-storage systems, developed by Kevin R. Heim at the Jet Propulsion Laboratory (JPL) under a NASA contract. The primary focus is on a design modification that utilizes dual optics to enhance the efficiency and compactness of these systems.
Holographic data storage systems typically consist of a laser and a polarizing beam splitter that generate two coherent light beams: the reference beam and the image beam. These beams interfere within a holographic storage medium, such as doped lithium niobate, to store data. The conventional setup requires multiple optical components, including lenses for beam expansion and Fourier transformation, which can lead to a bulky system.
The proposed modification aims to streamline this architecture by repositioning and replacing certain optical components, allowing some components to perform dual functions. Specifically, the design incorporates a quarter wave plate (QWP), a reflective spatial light modulator (RSLM), and an additional polarization beam splitter (PBS). By eliminating one lens and combining the functions of the beam-expanding lens and the first Fourier-transform lens, the overall system volume can be significantly reduced.
The document outlines the technical details of the modified system, emphasizing the benefits of this compact design. The reduction in length and slight increase in width lead to an overall decrease in volume, making the system more efficient and easier to integrate into various applications. The retrieval process of stored images is also described, highlighting how the modified system maintains functionality while enhancing compactness.
In summary, this report details a significant advancement in holographic data storage technology, showcasing a method to create a more compact and efficient system through innovative optical design. The work is positioned as part of ongoing efforts to miniaturize data storage solutions, which is crucial for the development of high-density storage systems in various fields, including aerospace and information technology. The document serves as a technical brief for stakeholders interested in the advancements of holographic data storage and its potential applications.
