An Internet-based software system, called the "Web Interface for Telescience" (WITS), enables geographically dispersed scientists to participate in scientific exploration of remote planets by use of instrumented landers and robotic vehicles called "rovers." WITS at a previous stage of development was described in "Web Interface for Telescience" (NPO-19934), NASA Tech Briefs, Vol. 21, No. 8 (August 1997), page 34. Since that description was published, major additional features have been incorporated. Originally intended for use in a rover mission on Mars in the year 2001, WITS reached sufficient maturity early enough to have limited use during the 1997 Mars Pathfinder mission. Also, WITS will be used in the 1998 Mars Polar Lander mission.
One basic purpose of WITS is to enable mission scientists at their home institutions to collaborate, quickly and efficiently, in planning planetary robot operations without having to travel to a central control station at NASA's Jet Propulsion Laboratory. This is accomplished by use of interactive displays of images of terrain from rover-mounted video cameras, terrain maps derived from such images, and other data from rover-mounted instruments. Provisions for measuring and annotating terrain features and planning mission activities are included in the displays. Scientists and engineers can, for example, use WITS displays to enter such command data as way points on a traversal of terrain, plus scientific observations and/or engineering tasks that the rover must perform at some or all way points.
Another basic purpose served by WITS is to communicate mission data to the public as quickly as possible. To serve this purpose while providing an element of security, WITS is constructed as two physically separate, parallel systems: the mission system and the public system (see figure). Both systems receive data updates from the rover mission, and both systems contain the same software, including software for planning rover tasks. However, only the mission system commands the rover. The planning software in the public system can be used only to perform simulations that reside solely on users' computers. In other words, the mission and public systems are nearly identical, except that data are not transmitted from the public to the mission system.
The WITS software is divided into two parts: (1) the client part, which is executed on a user's computer, and (2) the server part, which is executed on one server computer for the mission system and on another server computer for the public system. The servers communicate with the clients and perform such computationally intensive operations as processing of stereoscopic images and generation of range maps. The mission server also acts as an interface with the communication system that conveys data to and from the rover and its spacecraft. The servers maintain a common data base, including information on the current mission plan. Collaboration is greatly facilitated in that the same video images, instrument readouts, and planning information can be viewed simultaneously by all users. However only mission participants (who must prove authorization by logging onto the mission server by use of passwords) can modify the common data base.
The client part of the WITS software is written in the Java computing language as a Java applet and is automatically downloaded onto the user's computer by the user's own web-browser software. This feature makes WITS available to many users and executable on almost any computer at any site. The great advantages of this feature are that the collaborating team and public audience can be expanded at little cost, and that each user has immediate access to the most recent version of the client part of the WITS software.
Geographically Dispersed Computer Users have access to rover-mission data, though only scientists and engineers directly involved in the mission can affect the mission. Members of the general public can use planning software to plan and simulate rover activities on their local computers only.
This work was done by Paul Backes of Caltech and Kam S. Tso and Greg Tharp of IA Tech, Inc., for NASA's Jet Propulsion Laboratory. NPO-20374

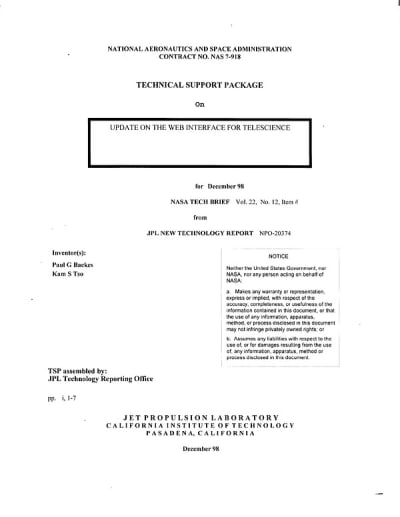

This Brief includes a Technical Support Package (TSP).
Update on the web interface for telescience.
(reference NPO20374) is currently available for download from the TSP library.
Don't have an account?
Overview
The document discusses the Web Interface for Telescience (WITS), an Internet-based tool developed by NASA's Jet Propulsion Laboratory (JPL) for the Mars Pathfinder mission and future Mars missions. WITS facilitates collaborative planning and simulation of rover and lander missions, allowing scientists and the public to engage with mission data and operations remotely.
WITS is designed to support mission operations by enabling scientists to view downlinked images, perform terrain feature measurements, and plan daily activities. It is accessible via a web browser and is written in Java, making it compatible with various computer platforms. The system architecture consists of two main components: a client part that users download to their computers and a server part that resides at JPL or other designated locations. This separation ensures that public usage does not interfere with the mission system's operations.
The document outlines the motivations behind WITS's development, including the need for a collaborative tool that allows geographically distributed scientists to participate in long-duration missions without being physically present at JPL. WITS enhances the mission planning process by enabling simultaneous collaboration between science and engineering teams, thus speeding up decision-making and eliminating reliance on paper-based communication.
WITS also provides a public system that allows users to plan and simulate their own missions using the same data and tools as the mission team, although the public system operates independently to maintain security and performance for the mission system. The public can access mission data quickly, fostering outreach and engagement with space exploration.
The document highlights the importance of WITS in the context of future Mars missions planned for 1998, 2001, and 2003, emphasizing its role in enabling scientists to work collaboratively and efficiently. It also mentions the use of advanced technologies, such as Marimba's Castanet, to facilitate quick access to the WITS applet, even on slower Internet connections.
In summary, WITS represents a significant advancement in the way planetary missions are planned and executed, promoting collaboration among scientists and engaging the public in the exploration of Mars. Its development reflects the ongoing commitment of NASA to leverage technology for scientific discovery and public outreach.
