Optical range measurements, already used in manufacturing and other fields, may help overcome practical challenges posed by structural fires, which are too hot to measure with conventional electromechanical sensors mounted on buildings.
A LADAR (laser detection and ranging) system was used to image three-dimensional (3D) objects melting in flames. The commercial LADAR system mapped distances to objects melting behind flames that produced varying amounts of soot. The experiment measured 3D surfaces with a precision of 30 micrometers (millionths of a meter) or better from 2 meters away. This level of precision meets requirements for most structural fire research applications.
LADAR offers several advantages as a tool for imaging through flames. The technique is very sensitive and can image objects even when small amounts of soot are present in the flames. The method also works at a distance, from far enough away that the equipment is safe from the intense heat of a fire. In addition, the instrument can be compact and portable, relying on fiber optics and simple photodetectors.
In the 3D mapping system, a laser sweeps continuously across a band of optical frequencies. The initial laser output is combined with the reflected light from the target. The resulting “beat” signals are detected, and this voltage is then analyzed by digital signal processing to generate time-delay data, equivalent to distance. (The difference in frequency between the initial signal and the one received from the target increases with distance.) LADAR was applied to measure and map 3D “point clouds” — points are the “voxels” constituting an image — even in a turbulent fire environment with strong signal scattering and distortion.

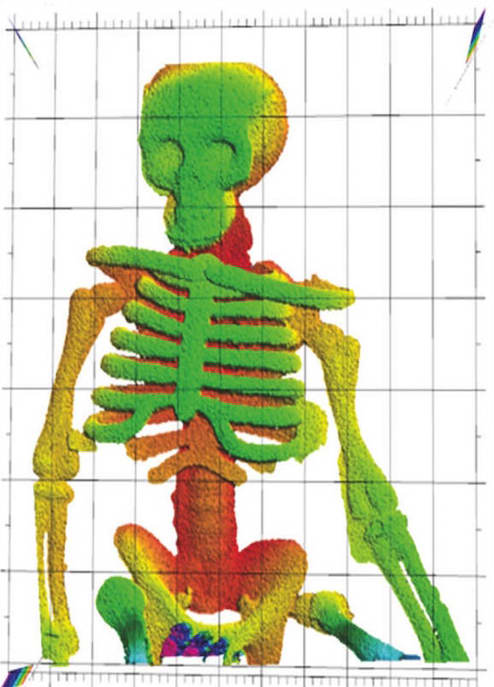

The demonstration focused on pieces of chocolate and a plastic skeleton. For the melting chocolate, each LADAR frame consisted of 7,500 points sufficient to capture the chocolate deformation process. The plastic skeleton was barely visible in the conventional video, but the 3D point cloud revealed complex shapes otherwise hidden behind flames — details of the ribcage and hips.
The LADAR system was fast enough to overcome signal distortions, and deflections of the laser beam due to the flames could be accommodated by averaging the signals over time to retain high precision. The initial experiments were conducted with flames just 50 millimeters wide on lab burners; preliminary results suggest that the LADAR technique could be applied to larger objects and fires.
