Researchers have developed a way to enhance the imaging speed of two-photon microscopy up to five times without compromising resolution. This record-fast imaging speed will allow scientists to observe biological phenomena that were previously too fleeting to image with current state-of-the-art advanced microscopy.

In the Optical Society (OSA) journal “Optics Letters,” researchers led by Shih-Chi Chen from the Chinese University of Hong Kong describe how they combined a computational imaging approach known as compressive imaging with a faster scanning method. They used the new method to acquire two-photon microscopy images of a pollen grain in less than one second. This would take five times as long using the traditional approach.

"This new compressive sensing-based two-photon microscopy method will be useful for visualizing a neural network or monitoring activity from hundreds of neurons simultaneously," said Chenyang Wen, first author of the paper. "Typically, neurons transmit signals on a time scale of 10 milliseconds, which conventional systems are too slow to follow."

Two-photon microscopy works by delivering ultrafast pulses of infrared laser light to the sample where it interacts with tissue or fluorescent labels that emit signals used to create an image. It is extensively used for biology research because of its ability to produce high-resolution 3D images up to a depth of one millimeter. These advantages, however, come with a limited imaging speed because the low-light conditions call for point detectors that require point-by-point image acquisition and reconstruction.

To speed up imaging, the researchers previously developed a multi-focus laser illumination method that uses a digital micromirror device (DMD), a type of low-cost light scanner typically used in projectors. "It was thought that these DMDs could not work with ultrafast lasers," said Chen. "However, we recently addressed this issue, which has enabled application of DMDs in ultrafast laser applications that include beam shaping, pulse shaping, fast scanning and two-photon imaging."

The DMD generates five to 30 points of focused laser light on randomly selected locations within a specimen. The position and intensity of each point of light are controlled by a binary hologram that is projected onto the device. During each measurement, the DMD reflashes the hologram to change the position of each focus and records the intensity of the two-photon fluorescence with a single-pixel detector. Although, in many ways, DMD multi-focus scanning is more flexible and faster than traditional raster scanning, the speed is still limited by the rate at which the device can form light patterns.

In the new work, the researchers further increase the imaging speed by combining multi-focus scanning with compressive sensing. This computational approach enables image reconstruction with fewer exposures because it carries out sampling and image compression in a single step and then uses an algorithm to fill in the missing information. For two-photon microscopy, it allows a specimen to be reconstructed using 70 to 90 percent fewer exposures than traditional approaches.

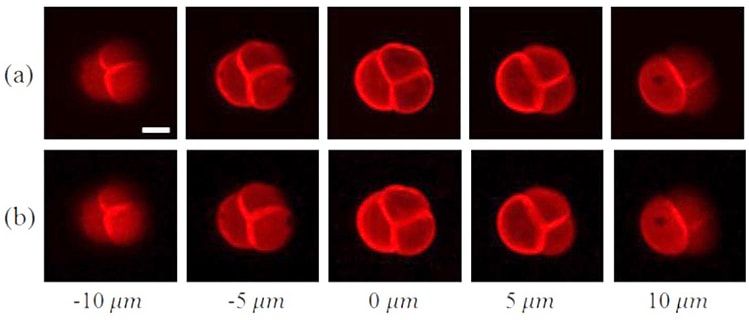

After conducting a simulation experiment to demonstrate the new method's performance and to identify optimal parameters, the researchers tested it with two-photon imaging experiments. These experiments demonstrated the technique's ability to produce high-quality 3D images with high imaging speeds from any field of view. For example, they compared two-photon microscopy images of a pollen grain using traditional raster scanning (a) and their new compressive imaging approach (b). The raster-scanning imaging time was 2.2 seconds while the compressive imaging time required only 0.55 seconds.
