This technology applies NASA engineering to a FLIR Systems Boson camera core to enable a robust infrared camera for use in extreme applications. Enhancements to the standard Boson platform include a ruggedized housing, connector, and interface.

The Boson is a commercial off-the-shelf, small, uncooled, IR camera based on microbolometer technology and operates in the long-wave infrared (LWIR) portion of the IR spectrum. It is available with several lens configurations. NASA’s modifications allow the IR camera to survive high-vibration environments (e.g., launch) and improve heat removal for operation in a range of harsh conditions including vacuum.

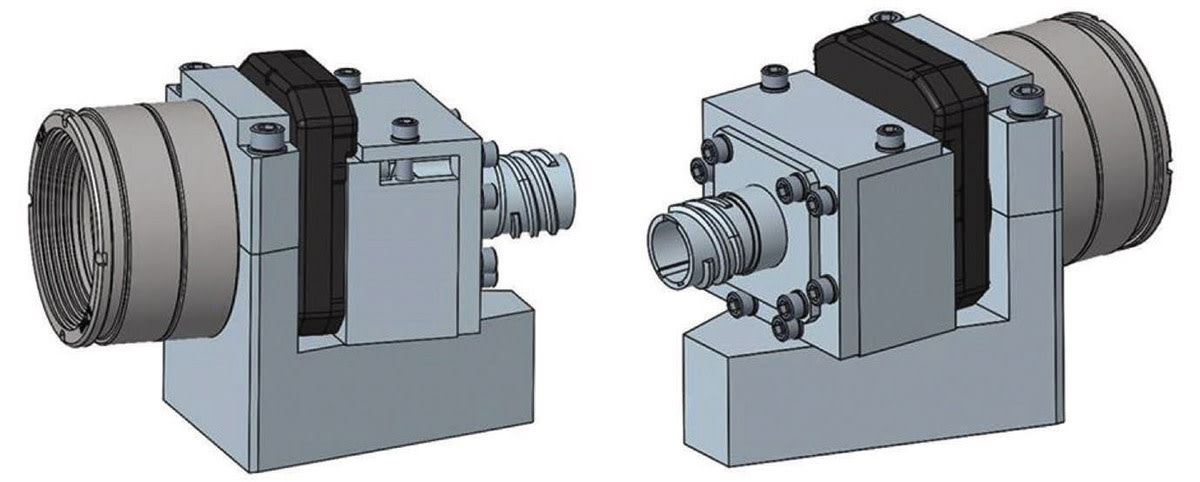

The design includes a custom housing to secure the camera core along with a lens clamp to maintain a tight lens-core connection during launch conditions. The housing also provides additional conductive cooling for the camera components, allowing operation in a vacuum environment. A custom printed circuit board (PCB) in the housing allows for a USB connection using a military standard (MIL-STD) miniaturized locking connector instead of the standard USB type C connector. The system maintains the USB standard protocol for easy compatibility and plug-and-play operation.

NASA is actively seeking licensees to commercialize this technology. Please contact NASA’s Licensing Concierge at This email address is being protected from spambots. You need JavaScript enabled to view it. or call us at 202-358-7432 to initiate licensing discussions. Follow this link here  for more information.
