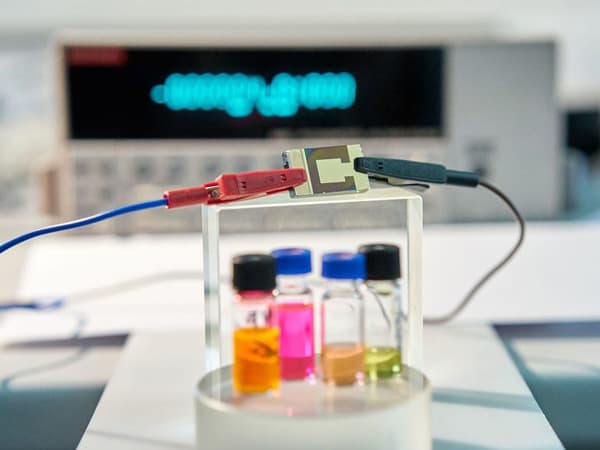

Cesium-containing triple-cation perovskite solar cell. (Credit: Marius Franckevicius)

Climate change and its consequences are becoming increasingly obvious, and solar cells that convert the sun’s energy into electricity will play a key role in the world’s future energy supply. Common semiconductor materials for solar cells, such as silicon, must be grown via an expensive process to avoid defects within their crystal structure that affect functionality. But metal-halide perovskite semiconductors are emerging as a cheaper, alternative material class, with excellent and tunable functionality as well as easy processability.

Perovskite semiconductors can be processed from solution, and a semiconductor ink can be coated or simply painted over surfaces to form the desired film. This can be incorporated into semiconductor devices, such as solar cells or light-emitting diodes.

“For many years, solution-processed semiconductors were viewed as unable to deliver the same functionality as specially grown crystalline semiconductors,” said Lukas Schmidt-Mende, a researcher from the University of Konstanz in Germany. “The reason behind this thinking was that simple solution processing will inherently lead to a relative high number of defects within the formed crystal structure, which can negatively affect its functionality.”

It turns out organic-inorganic hybrid perovskites are very defect-tolerant. Defects formed after processing do not dramatically influence device functionality, and for the first time, hybrid perovskites are enabling efficient solution-processed devices.

“We can simply change the chemical composition of the perovskite to tune its bandgap, which allows us to change the absorption profile,” said Schmidt-Mende. “This can be used to prepare light-emitting diodes at different wavelengths or to tune the perovskite material for tandem solar cells to optimize the absorption profile.”

High defect tolerance, however, “came as a surprise that needs to be better understood,” he said. “Understanding the details will help to further optimize the material, perhaps to find other similar efficient alternatives and give us the chance to improve applications based on perovskite semiconductors.”

The group points out that perovskite devices currently have two major drawbacks. First, the most efficient devices all contain toxic lead and efforts to replace it with less toxic elements have so far been only partly successful. Second, perovskite devices have a reduced life span compared to silicon devices.

“Although the stability of perovskite devices has increased dramatically during the past few years, we still do not understand and have not overcome all of its degradation mechanisms,” said Schmidt-Mende.
