Power Diodes

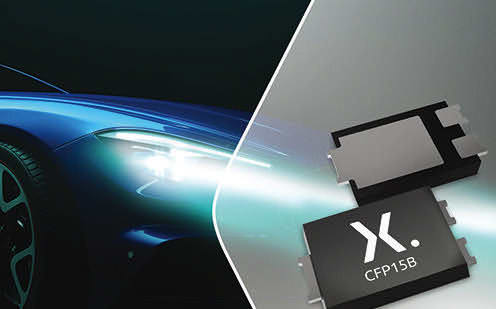

Nexperia (Nijmegen, The Netherlands) has announced the latest additions to its rapidly expanding portfolio of Clip-bonded FlatPower (CFP) packaged diodes. The latest additions include 32 planar Schottky diodes and eight hyperfast recovery rectifiers housed in the CFP15B package. They are available as standard and Q-types that meet AEC-Q101 automotive qualification standards. The operating range for these new planar Schottky diodes is between 30-100 V and 3-15 A. Versions optimized for low forward voltage (VF) (including the PMEG100V080ELPE/-Q) deliver low conduction losses and high efficiency for cost-efficient DC-DC converters and in reverse polarity protection applications. These diodes are also available in low leakage variants with ultra-low reverse current and best-in-class operating temperature capability, providing exceptional robustness against thermal runaway. The eight 200 V single-type recovery rectifier devices (PNE200xxEPE/-Q series) have an average forward current (IF) between 4-10 A and complement existing dual type recovery rectifiers also available. Using the smaller, high-power density CFP15B instead of DPAK or SMB/C packages can save up to 60 percent of board space, while maintaining the same level of electrical performance.

For more info visit here


Battery Management System

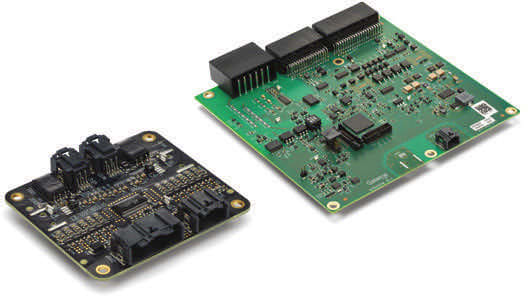

Sensata Technologies (Swindon, U.K.) has unveiled the Lithium Balance n3-BMS for high voltage applications. The Lithium Balance n3-BMS is ideal for applications with power up to 1000 volts/2000 amps, especially for battery makers and manufacturers of electric trucks, buses, and other heavy commercial vehicles. The unique layered software structure of the n3-BMS provides customers with the option to customize the battery management system with their own code and algorithms without impacting the ASIL C certification. The BMS software architecture consists of a “Base Software Layer” (BSW) and an “External Software Layer” (ESW) which are connected by an open API link layer. Since all the safety-critical functionalities of the BMS are in the BSW layer of the software, developers are free to implement their own software code and algorithms in the ESW without any risk to the ISO 26262 certification of the system. The n-BMS’ MCU is fully compatible with the n3-BMS’ CMUs, so it is easy to upgrade from n-BMS to n3-BMS with the replacement of a single PCB board in a battery system of any size.

For more info visit here


High Current SMD Fuse

SCHURTER (Santa Rosa, CA) has launched its newest addition to the SCHURTER Fuse portfolio: The fast-acting UHP High Current SMD Fuse, designed to safely interrupt high-energy over-current in battery systems. Specially designed for Safety Extra Low Voltage (SELV) applications, the UHP meets the high-breaking capacity requirements and fast trip time of an overcurrent situation by galvanically separating these immense energies. The UHP fuse disconnects the circuit at twice the rated current within a maximum of 15 seconds. The rated breaking capacity of the UHP is up to 3000 A, depending on the configuration. It features a robust design with a small footprint, which allows for reflow solder process compatibility and space savings on the PCB. Operating temperature range is -55 °C to 125 °C. It is available in six current ratings from 50-100 A at 80 VDC or 63 VDC, depending on the required breaking capacity of 3000 A or 2000 A.

For more info visit here


Gelled Tantalum Capacitors

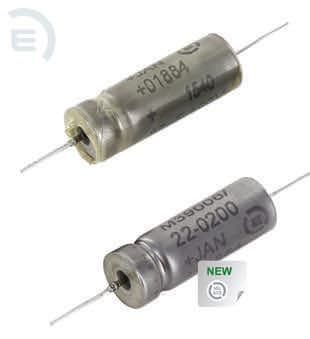

Exxelia (Paris, France) has expanded its line of MIL-PRF-39006/22 and MIL-PRF-39006/25 tantalum capacitors. It now offers the reliability level R, in addition to level M and P for the specifications MIL-PRF-39006/22 and MIL-PRF-39006/25, equivalent to CLR79 and CLR81 series. Available in all package sizes (T1 to T4), these fully sealed products cover voltages from 6V to 125V, deliver capacitance values ranging from 1.7 μF to 1200 μF, and are designed to operate at temperatures ranging from -55 °C to +125 °C and withstand the harshest environmental conditions. Performance highlights over solid tantalum capacitors include higher energy density, higher ripple currents, lower ESR, and lower DC leakage current. The capacitors can be easily integrated into power supplies and converters or filtering units for the aerospace and defense industries.

For more info visit here
