Deployed Electromagnetic Radiation Deflector Shield

Kennedy Space Center, Merritt Island, FL

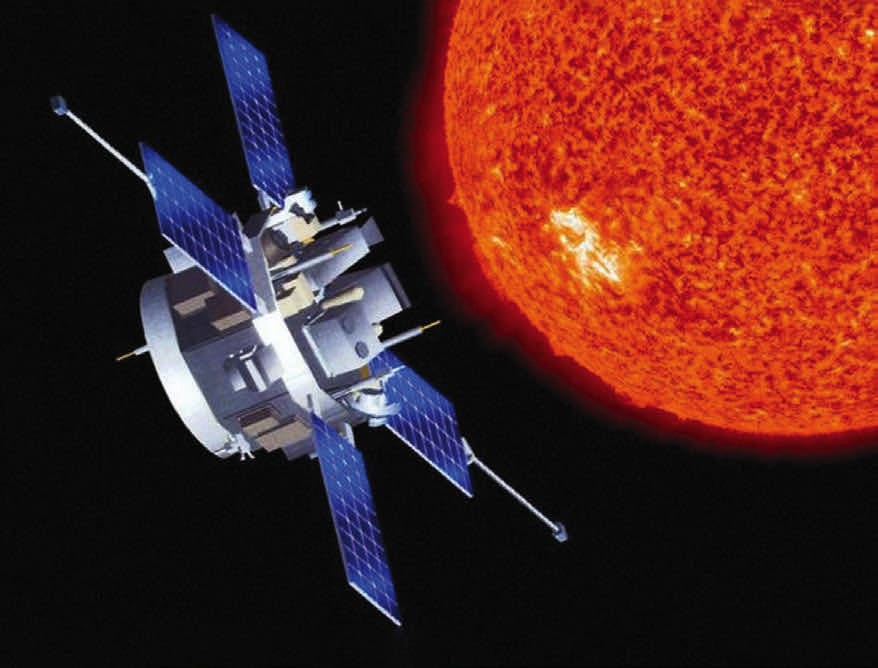

DERDS is deployed in space away from the protected spacecraft to remain between the radiation source and the spacecraft. (Image: NASA)

Spaceflight outside of the Earth’s protective magnetic field is dangerous from a cosmic radiation perspective. Inside Earth’s magnetic field, where the manned International Space Station (ISS) orbits, the radiation encountered is minimal and almost all is deflected by our planet’s magnetic fields. However, outside that protective shield, the Sun’s solar wind (high energy radiation, solar energetic particles or SEPs) consisting of protons, electrons, alpha particles, and plasmas continuously bombards the spacecraft for the months or years of spaceflight.

On occasion the Sun produces a CME (Coronal Mass Ejection) that vastly increases the energy and volume of this radiation. These particles damage human DNA as well as living tissue and can destroy sensitive electronics. The Deployed Electromagnetic Radiation Deflector Shield (DERDS) provides a magnetic field that will deflect SEPs and CMEs and other harmful solar and cosmic rays away from a manned spacecraft, robotic spacecraft, or manned extra-planetary base stations using an electromagnet that is deployed between the spacecraft/station and the source of radiation and creates a magnetosphere or zone of minimal radiation in which the spacecraft or base station would reside.

DERDS is deployed in space away from the protected spacecraft to remain between the radiation source and the spacecraft. It utilizes on board cosmic ray sensors to note the need for the strength of the magnetic field, and onboard sensors to position itself directly in line between the radiation source and the protected spacecraft or station. Onboard computers and thrusters maintain the required position, so that the magnetic field is positioned for the best deflection angle based on incoming radiation.

The DERDS magnetic field can be varied in both direction, intensity, and time by use of both AC and DC electrical power inputs and varied as needed to optimize the deflection angle and power requirements. The magnetic field can also be perturbed in irregular or set patterns by onboard computers and sensors as needed to maintain the proper deflection of SEPs, CMEs, and other cosmic rays. DERDS creates a magnetic field that will not need to be so large (with a much larger power requirement) as to encompass the entire protected spacecraft, and the magnetic field will not interfere with the spacecraft.

NASA is actively seeking licensees to commercialize this technology. Please contact NASA’s Licensing Concierge at This email address is being protected from spambots. You need JavaScript enabled to view it. or call at 202-358-7432 to initiate licensing discussions. For more information, visit here .
