An improved design for baseplates in silicon microsensors reduces parasitic capacitances between adjacent coplanar electrodes. It also reduces thermal-expansion mismatches, which are present in baseplates of older design.
Heretofore, baseplates of silicon microsensors have been made from quartz or ceramic because of concern over parasitic capacitance, which can adversely affect sensor performance. The disadvantage of using quartz or ceramic is that the coefficients of thermal expansion of these materials differ from that of silicon. The thermal-expansion mismatch subjects the sensors to undesired stresses that vary with temperature.
According to the improved design, the baseplate of a silicon microsensor is made from silicon, eliminating the thermal-expansion mismatch. The silicon baseplate (see figure) includes a silicon substrate, a heavily p-doped epilayer, and a thick dielectric layer made of silicon dioxide or silicon nitride. Metal electrodes are deposited on the outer surface of the dielectric layer.
The p+ epilayer serves as an electrically conductive ground plane, which contributes to reduction of the capacitance between the electrodes. The dielectric layer electrically insulates the electrodes from the ground plane. The thickness of the dielectric layer is an important element of the design: The dielectric layer must be as thick as possible, consistently with other design considerations, in order to minimize the capacitance between the electrodes and the ground plane.
This work was done by Roman Gutierrez and Tony K. Tang of Caltech for NASA's Jet Propulsion Laboratory. For further information, access the Technical Support Package (TSP) free on-line at www.nasatech.com/tsp under the Electronics & Computers category.
In accordance with Public Law 96-517, the contractor has elected to retain title to this invention. Inquiries concerning rights for its commercial use should be addressed to
Intellectual Property group
JPL
Mail Stop 202-233
4800 Oak Grove Drive
Pasadena, CA 91109
(818) 354-2240
Refer to NPO-20689, volume and number of this NASA Tech Briefs issue, and the page number.
This Brief includes a Technical Support Package (TSP).

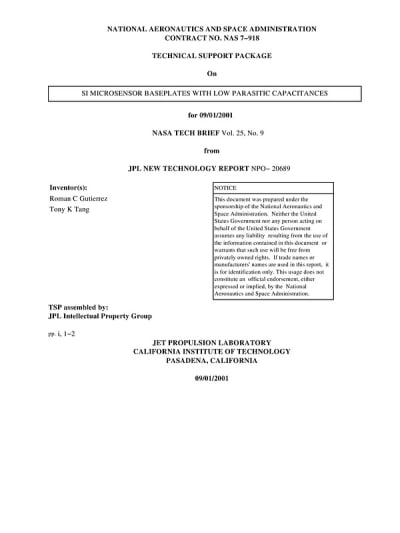

Si Microsensor Baseplates with Low Parasitic Capacitances
(reference NPO-20689) is currently available for download from the TSP library.
