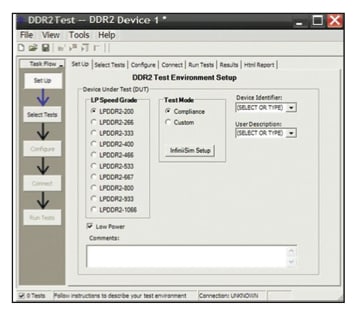

Agilent Technologies Inc. (Santa Clara, CA) has introduced a new comprehensive low-power double data rate 2 (LPDDR2) compliance and protocol test application package and industry-first LPDDR2 ball-grid array (BGA) probes. The Agilent N5413B LPDDR2 test application, which runs on Agilent Infiniium 9000 Series oscilloscopes, provides LPDDR2 physical-layer compliance measurements. The Agilent B4623A LPDDR2 bus decoder and the B4622A DDR protocol compliance tool, which run on the Agilent 16900 Series logic analyzers, provide debug and protocol compliance measurements.
Compliance tests are based on the Joint Electronic Device Engineering Council (JEDEC) JESD2092 Low-Power Double Data Rate 2 Specification. Signal access is provided by Agilent’s industry-first LPDDR2 BGA probes. Using the B4622A protocol tool and the B4623A bus decoder in conjunction with Agilent 16962A logic analyzer modules enables engineers to analyze the logical flow of LPDDR2 bus traffic and execute protocol compliance tests.
