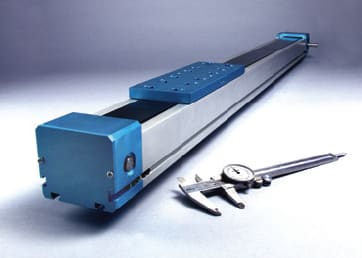

The Slipstream Series from LM76 (East Longmeadow, MA) 1 linear stage features 0.2mm/300mm accuracy and 0.1mm repeatability. Available in travel lengths to 6 meters, the precision stage has T-Slots on three sides for installation and/or accessories. The linear stage is ideal for robotics, pick-and-place, assembly, packaging, sampling, testing and other precision positioning applications.
Motor options for the linear stage include a NEMA 23 Stepper, and a 100W or 200W servomotor with encoder. Motors can be mounted on the left or right side, and a fail-safe brake is optional. Mounting configurations include X, Y, and Z axes, and gantries.
Steel precision profile rails handle dynamic loads to 22.3KN, and the 50-mm wide, steel-reinforced polyurethane timing belt features a maximum belt strength at 3000 rpm of 1300 N.
The low profile (83mm wide x 73mm high) stages are also available in stainless steel versions.
