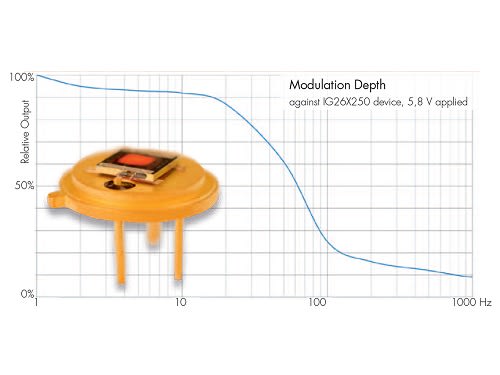

Laser Components (Hudson, NH) has introduced a new generation of diamond-like pulsable infrared emitters. The DLSxxxX2224 series has replaced its predecessors, 17-900 and 22-1000. Significant improvements include tighter process control, a longer life expectancy, and a broader hot spot. In particular at wavelengths above 4.5 μm the signal increased by approximately 30%. The diagram shows a sample measurement of the modulation depth in relation to the pulse frequency. This was measured using an IG26X250S4i type extended InGaAs photodiode.

www.lasercomponents.com/de-en/product/ir-emitters/
