Infrared Lighting Module

Photonics & Imaging Technology INSIDER

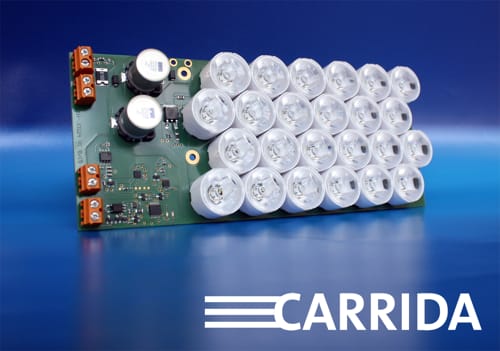

Vision Components (Ettlingen, Germany) has introduced the new VC Flash infrared area lighting for OEMs. The lighting module has been developed specifically for traffic surveillance applications. Fitted with 24 high power LEDs, it ensures optimal brightness in mobile and stationary ANPR/ALPR applications, red light enforcement, access control, and toll collection without a glare effect that could endanger drivers. VC Flash illuminates an area measuring 7.5 by 5.0 m from 20 m away. The module measures 195 x 80 x 20 mm, and operates with a central wavelength of 850 nm and a spectral width of 30 nm. Power consumption peaks at 36 W for the highest pulse duration and pulse frequency levels.
