The current coring bit and percussive drilling style works very well for strong rocks; however, when coring into weak, crumbling rock, the core tends to break apart and simply fall out of the bit. These rocks, powder, and other debris can have useful information that is lost when they fall out of the bit after the core has been made, as there is no retention feature in place. A retention mechanism for coring into weak rocks was developed.

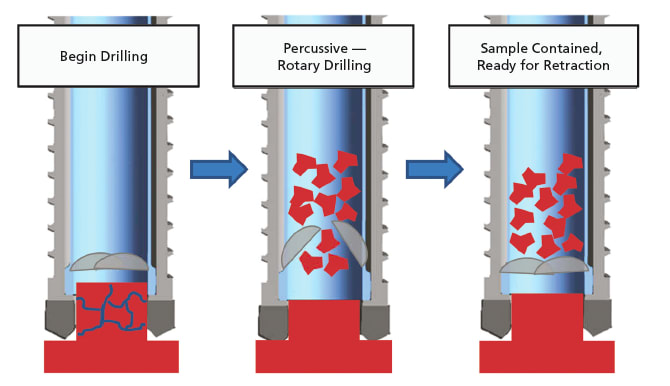

The passive close-off feature consists of tabs that create a double or triple door that only opens one way, allowing rocks and regolith to enter, but not fall out. The tabs hug the inside of the tube and overlap slightly so that the rocks and regolith collected could not fall out.
One way to approach the solution is to create a system of one-way valves that allows material to enter the tube, but not exit. By creating a system of one-way doors, the material that is being collected can easily be pushed further up the tube and be retained there, while new material then has more space to fill up in the lower parts of the tube that have recently been vacated.

From this concept, the tab structure was developed. The tabs effectively create a double (or triple) door that only opens one way. This allows both rocks and regolith to enter, but not fall out. The tabs were made of copper shim, and were pre-bent to hug the inside of the tube when folded up, out of the way of new rock. Four wires, in two pairs, were bonded to each copper tab and then fed through a small hole in the side of the tube and bent to create a hinge that allowed the tabs to rotate up and down easily. The tabs overlapped slightly so that the rocks and regolith collected could not fall back out the middle of the tabs, even if they were slightly misaligned.

This design is very simple and the tab pieces are inexpensive and easy to duplicate for production purposes. The implementation is also very straightforward as these tabs are attached to a sample tube that can be removed from a coring bit, thus not affecting the overall method of core drilling. This design allows for full retention of the material.

This work has applications for all current and future coring activities. There have been designs that can capture regolith or rock, but this is one of the first designs that can effectively capture both. Both of these sample form factors are important for the proposed science.

This work was done by Margaret A. Scholtz, Celena Staff, and Charles M. Dandino of Caltech for NASA’s Jet Propulsion Laboratory. NPO-49663

Topics:
Body structures Copper Doors Drilling Gases Machining processes Mechanical Components Metals Parts People and personalities Personnel Production Soils Valves
This Brief includes a Technical Support Package (TSP).
Document cover
Passive Close-Off Feature for Sample Acquisition and Retention

(reference NPO49663) is currently available for download from the TSP library.

Don't have an account?

Magazine cover
NASA Tech Briefs Magazine

This article first appeared in the February, 2016 issue of NASA Tech Briefs Magazine (Vol. 40 No. 2).

Read more articles from this issue here.

Read more articles from the archives here.

Overview

The document outlines the development of a Passive Close-Off Feature for Sample Acquisition and Retention, created by researchers at NASA's Jet Propulsion Laboratory (JPL). This innovation addresses a significant challenge in coring operations, particularly when drilling into weak or crumbling rocks, which tend to break apart and lose valuable material during the extraction process.

The problem arises from traditional coring methods, which are effective for strong rocks but inadequate for retaining samples from weaker formations. The absence of a retention mechanism leads to the loss of important geological information. To solve this issue, the researchers designed a system of one-way valves, or tabs, that allow material to enter a sample tube while preventing it from falling out. This design enables the collection of both rocks and regolith, ensuring that valuable samples are retained during the coring process.

The tabs are constructed from copper shim and are pre-bent to fit snugly inside the sample tube. They are designed to overlap slightly, creating a barrier that prevents collected material from escaping, even if the tabs are misaligned. This simple yet effective design is cost-efficient and easy to produce, making it suitable for widespread application.

The document also discusses the potential commercial applications of this technology, highlighting its relevance in various fields such as oil and gas exploration, deep-sea coring, and medical investigations. In the oil industry, the retention mechanism could be used to collect sand while draining water from samples. In medical applications, it could facilitate the collection of samples from internal organs with minimal tissue removal.

The innovation is currently at Technology Readiness Level (TRL) 4, indicating that it has been built and tested on a flight-like baseline coring drill for the Mars 2020 mission. The design has shown repeatable results in improving rock and regolith retention, making it a promising advancement for future coring activities in both space exploration and terrestrial applications.

Overall, this document highlights a significant technological advancement that enhances the ability to collect and retain geological samples, thereby improving the quality of scientific data obtained from coring operations.
